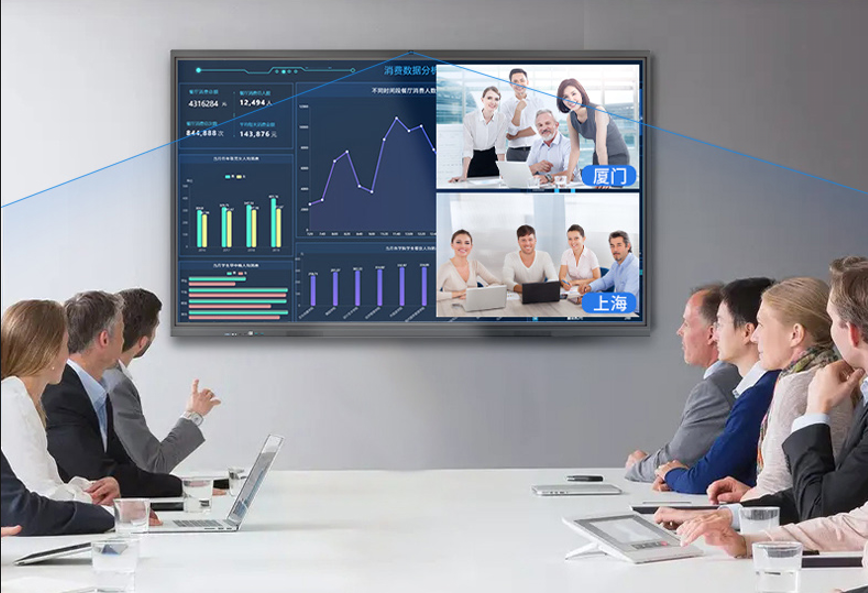

Z Series AIP3683: 4K UHD Zero-OS Interactive Flat Panel
AIP3683
Copied!
Key Features
- 4K Ultra HD display (55”–98”) with wide 178° viewing angle
- 20-point infrared touch with smooth writing & ±1mm accuracy
- Anti-glare 4mm glass with 60M+ touch durability
- Built-in speakers (15W ×2) for clear audio
- Essential connectivity: HDMI, USB, VGA, AV, Touch
- Plug & play (HID) with no calibration needed
- OPS PC support for easy upgrade
- Low power use with 30,000-hour lifespan
Key Selling Points of the Z Series Interactive Monitor
1. Secure Zero-OS Architecture
2. Stunning 4K UHD Visual Performance
3. High-Precision 20-Point IR Touch
4. Full-Function 65W Type-C Connection
5. Versatile OPS Expansion Slot
6. Industrial-Grade Durability
Technical Specifications
| Model | Item | AP55HT | AP65HT | AP75HT | AP85HT | AP86HT | AP98HT |
| Display Parameter | Diagonal Size | 55inch | 65inch | 75inch | 85inch | 86inch | 98inch |
| Effective Display Area | 1209.6(H)*680.4(V) | 1428.48(H)*803.52(V) | 1650.24(H)×928.26(V) | 1872(H)×1053(V) | 1895(H)×1066(V) | 2158.85(H)*1214.35(V) | |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 1200:1 | |
| Backlight Type | DLED | DLED | DLED | DLED | DLED | DLED | |
| Viewing Angle | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | |
| Resolution | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840(H) X 2160(V) | 3840（H) X 2160(V) | |
| Audio Output Power | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | |
| Touch | Touch technology | Infrared Multi Touch Technology | |||||
| Touch Points | 20 points touch | ||||||
| Drive | HID drive free | ||||||
| Writing surface material | 4mm Ag anti glare glass | ||||||
| Touch Screen Sensor Mode | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | ||||||
| Resolution | 32768X32768 | ||||||
| Communication Port | USB 2.0 | ||||||
| Min Recognition Dim | 2mm | ||||||
| ResponseTime | ≤10ms | ||||||
| Touch Accuracy | ±1mm | ||||||
| Anti-Interference | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | ||||||
| Calibration | Calibration free | ||||||
| Touch Times | More than 60 million times in the same position | ||||||
| Touch Power supply Mode | USB 5.0V power supply | ||||||
| Back port | AV IN | 1 | |||||
| HDMI 2.0 | 1 | ||||||
| PC-AUDIO IN | 1 | ||||||
| VGA IN | 1 | ||||||
| USB 2.0 | 1 | ||||||
| Earphone | 1 | ||||||
| TOUCH OUT | 1 | ||||||
| Front port and function | USB2.0 | 2 | |||||
| HDMI 2.0 | 1 | ||||||
| USB TOUCH | 1 | ||||||
| Front button | Power Button On/Off | 1 | |||||
| Accessories | Magnetic whiteboard Pen X1pcs, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pcs | ||||||
| Others | Power consumption of the whole machine (excluding OPS) | ≤210W | ≤210W | ≤250W | ≤345W | ≤345W | ≤470W |
| Standby consumption | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | |
| Lifetime | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | |
| power supply | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | |
| Demission | 1259.8*762.85*84.8（mm） | 1485.2*890.8*97.8（mm） | 1707.6*1016.55*97.8（mm） | 1953.56*1155.85*97.8（mm） | 1953.56*1155.85*97.8（mm） | 2217.4*1309.85*102（mm） | |
| VESA hole site | 4-M8 hole site 400mm*400mm | 4-M8 hole site 500mm*400mm | 4-M8 hole site 700mm*400mm | 4-M8 hole site 800mm*600mm | 4-M8 hole site 800mm*600mm | 4-M8 hole site 900mm*600mm | |
| Net Weight | TBD | TBD | TBD | TBD | TBD | TBD | |
| Gross Weight | TBD | TBD | TBD | TBD | TBD | TBD | |
| package size | 1350*165*875（mm） | 1580*185*1015（mm） | 1815*185*1145（mm） | 2050*200*1295（mm） | 2050*200*1295（mm） | TBD | |
| PC（Optional） | PC Option | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard |
| Input Voluge | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | |
| Rated Output Current | 4.5A | 4.5A | 5.5A | 6A | 6A | 6.5A | |
| Peak Output Current | 83W | 83W | 99W | 108W | 108W | 117W | |
| Rated Load Power | Canform to Intel® OPS-C JAE 80-pin connector | ||||||
| lnterface | L194.6*W179.8*H42mm（42mm or 30mm） | ||||||
| National standard OPS size | L180*W119*H30mm | ||||||
