Apollo AIP3588 AI-Powered Smart Board
Key Features
Key Features:
- 4K Ultra HD display (55”–98”) with bright, wide viewing angle
- 40-point infrared touch with fast response (≤5ms) & high accuracy
- Android 15 system with RK3588 AI processor, 32GB RAM & 512GB storage
- Wi-Fi 6 + Bluetooth 5.2 for stable wireless performance
- Extensive connectivity: HDMI, USB 3.0/2.0, Type-C, DP, LAN, VGA
- Smart front controls + annotation, voice & touch lock functions
- Anti-glare durable glass with 60M+ touch lifespan
- Low power consumption with long 30,000-hour lifetime
Flagship Performance with 8-Core Computing Excellence
8nm Process with 2.4GHz High-Speed Octa-Core Architecture
6Tops NPU for Powerful Edge AI-Integrated Smart Classroom Solutions
Premium 4K UHD Visuals and Versatile Connectivity
4K Ultra HD Display with Mohs-7 Anti-Glare Protection
Full-Function 100W Type-C for One-Cable Connectivity
Technical Specifications
Interactive Flat Panel (Y Series 3588 RP-Q )（F） | ||||||||
Model | AP55HY | AP65HY | AP75HY | AP85HY | AP86HY | AP98HY | ||
Display Parameter | Diagonal Size | 55inch |
65inch |
75inch |
85inch | 86inch | 98inch | |
Effective Display Area | 1209.6(H)*680.4(V) | 1428.48(H)*803.52(V) | 1650.24(H)×928.26(V) | 1872(H)×1053(V) | 1895(H)×1066(V) | 2158.85(H)*1214.35(V) | ||
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | ||
Brightness | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | ||
Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 1200:1 | ||
Backlight Type | DLED | DLED | DLED | DLED | DLED | DLED | ||
Viewing Angle | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | ||
Resolution | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840(H) X 2160(V) | 3840（H) X 2160(V) | ||
Audio Output Power | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | ||
Touch | Touch technology | Infrared Multi Touch Technology | ||||||
Touch Points | 40 points touch | |||||||
Drive | HID drive free | |||||||
Writing surface material | 4mm Ag anti glare glass | |||||||
Touch Screen Sensor Mode | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | |||||||
Resolution | 32768X32768 | |||||||
Communication Port | USB 2.0 | |||||||
Min Recognition Dim | 2mm | |||||||
ResponseTime | ≤5ms | |||||||
Touch Accuracy | ±1mm | |||||||
Anti-Interference | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | |||||||
Calibration | Calibration free | |||||||
Touch Times | More than 60 million times in the same position | |||||||
Touch Power supply Mode | USB 5.0V power supply | |||||||
Android Specs | Android Frequency | 4*A76+4*A55 1.8GHz | ||||||
System Version | Android 15 | |||||||
Memory | DDR4 32G | |||||||
FLASH | 512G | |||||||
WIFI | wifi6 | |||||||
Bluetooth | 5.2 | |||||||

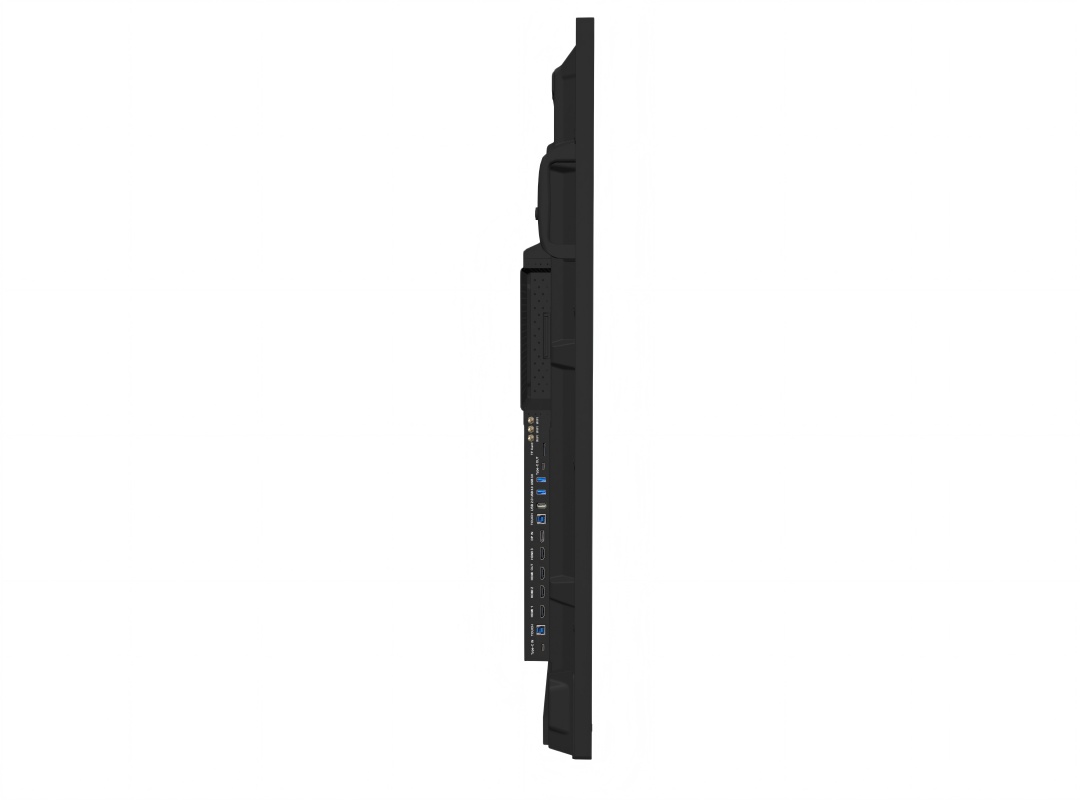

Back port | LAN IN | 1 | ||||||
HDMI | 3 | |||||||
RS-232 | 1 | |||||||
USB 3.0 | 2 | |||||||
USB 2.0 | 1 | |||||||
DP IN | 1 | |||||||
MIC IN | 1 | |||||||
TF-card | 1 | |||||||
VGA | 1 | |||||||
AUDIO IN | 1 | |||||||
Type-C | 1 | |||||||
HDMI OUT | 1 | |||||||
Earphone | 1 | |||||||
RJ45 OUT | 1 | |||||||
SPDIF | 1 | |||||||
TYPE-C OUT | 1 | |||||||
TOUCH OUT | 3 | |||||||
Front port and function | USB3.0 | 3 | ||||||
HDMI 2.0 | 1 | |||||||
USB TOUCH | 1 | |||||||
Type-C | 1 | |||||||
Front button | Power Button On/Off | 1 | ||||||
Voice+ | 1 | |||||||
Voice- | 1 | |||||||
Annotation | 1 | |||||||
Input | 1 | |||||||
home | 1 | |||||||
Touch Lock | 1 | |||||||
Module | Automatic photosensitive | 1 | ||||||
Pen Lifting Detection | 1 | |||||||
Accessories | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | |||||||
Others | Power consumption of the whole machine (excluding OPS) | ≤210W | ≤210W | ≤250W | ≤345W | ≤345W | ≤470W | |
Standby consumption | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ||
Lifetime | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | ||
power supply | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | ||
Demission | 1259.8*762.85*84.8（mm） | 1485.2*890.8*97.8（mm） | 1707.6*1016.55*97.8（mm） | 1953.56*1155.85*97.8（mm） | 1953.56*1155.85*97.8（mm） | 2217.4*1309.85*102MM | ||
VESA hole site | 4-M8 hole site 400mm*400mm | 4-M8 hole site 500mm*400mm | 4-M8 hole site 700mm*400mm | 4-M8 hole site 800mm*600mm | 4-M8 hole site 800mm*600mm | 4-M8 hole site 900mm*600mm | ||
Net Weight | TBD | TBD | TBD | TBD | TBD | TBD | ||
Gross Weight | TBD | TBD | TBD | TBD | TBD | TBD | ||
package size | 1350*165*875（mm） | 1580*185*1015（mm） | 1815*185*1145（mm） | 2050*200*1295（mm） | 2050*200*1295（mm） | TBD | ||
PC（Optional） | PC Option | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | |
Input Voluge | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | ||
Rated Output Current | 4.5A | 4.5A | 5.5A | 6A | 6A | 6.5A | ||
Rated Load Power | 83W | 83W | 99W | 108W | 108W | 117W | ||
lnterface | Canform to Intel® OPS-C JAE 80-pin connector | |||||||
National standard OPS size | L194.6*W179.8*H42mm（42mm or 30mm） | |||||||
European standard OPS size | L180*W119*H30mm | |||||||
