Apollo AIPPHD-P5504 LCD 2.6mm bazel Video Wall Commercial-Grade Display
AIPPHD-P5504
Copied!
Key Features
- 55-inch Full HD display (1920 × 1080 resolution)
- Commercial-grade BOE panel (DV550FHM-NVN)
- High brightness 500 cd/m² for clear, vivid visuals
- Strong contrast ratio 4000:1 for deep image detail
- Ultra-narrow bezel (2.6mm) for near-seamless video walls
- Wide 178° viewing angle for consistent visibility
- Fast 8ms response time for smooth playback
- 16.7 million colors for natural image reproduction
- LED backlight for energy-efficient performance
- Multiple input options: HDMI, DVI, RS232, USB
- RS232 IN/OUT support for video wall control & daisy chaining
- Low power standby ≤0.5W
- Durable commercial design for 24/7 operation
• BOE original panel with LED backlight
• 500cd/m² brightness and 178° viewing angle

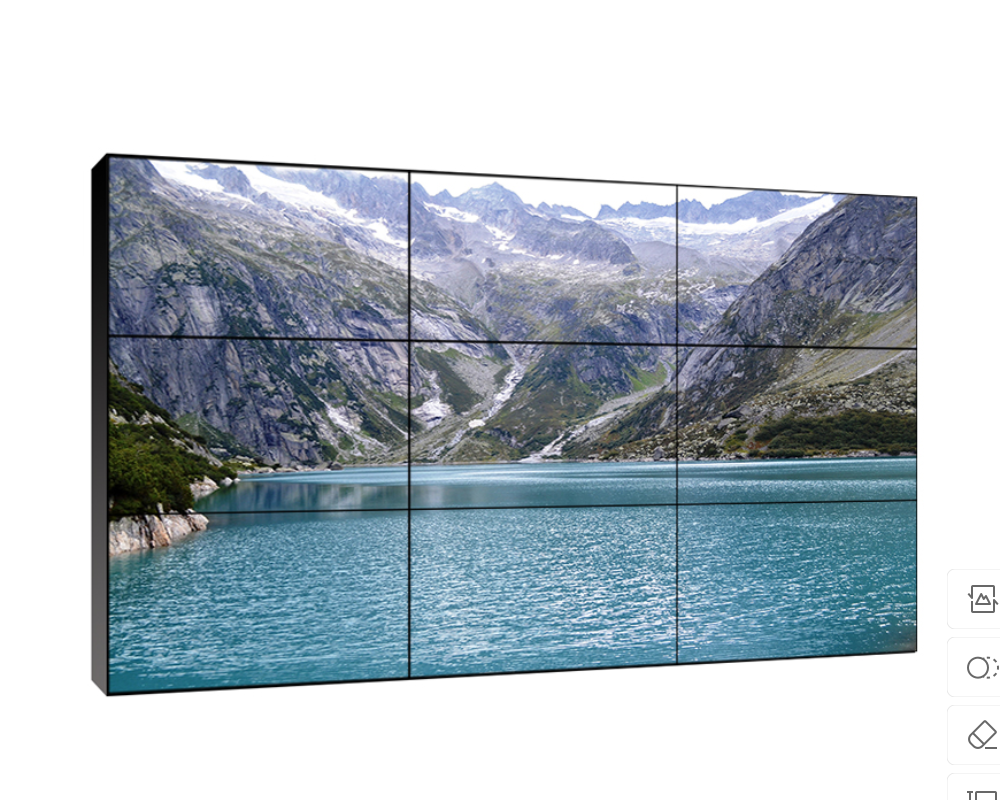

• Seamless multi-screen splicing capability
• HDMI/DVI/USB signal compatibility
• Smart light adjustment and energy-saving design
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AIPPHD-P5504 |
| Screen Size | 55 inches |
| Panel | BOE/DV550FHM-NVN |
| Backlight | LED backlight |
| Resolution | 1920 × 1080 |
| Brightness | 500 cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Viewing Angle | 178°(H)/178°(V) |
| Display Color | 16.7 Million |
| Weight | 25 kg |
| Power Supply | 100-240V AC, 50/60Hz |
| Maximum Power | ≤240W |
| Standby Power | ≤0.5W |
| Operating Temperature | 0℃ to 50℃ |
| Operating Humidity | 10% to 90% |
| I/O Ports | HDMI ×1, DVI ×1, RS232 IN ×1, RS232 OUT ×2, USB ×1 (Firmware Upgrade) |
| Product Dimensions | 1212.4 × 682.1 × 65.29 mm |
| Bezel Width | 2.6 mm |
| Accessories | Power Cord ×1, Network Cable ×1, Hook ×4, Screw ×8, RS232 Adapter ×1, Remote Control ×1 |
| Certification | CoC, Warranty Card |
