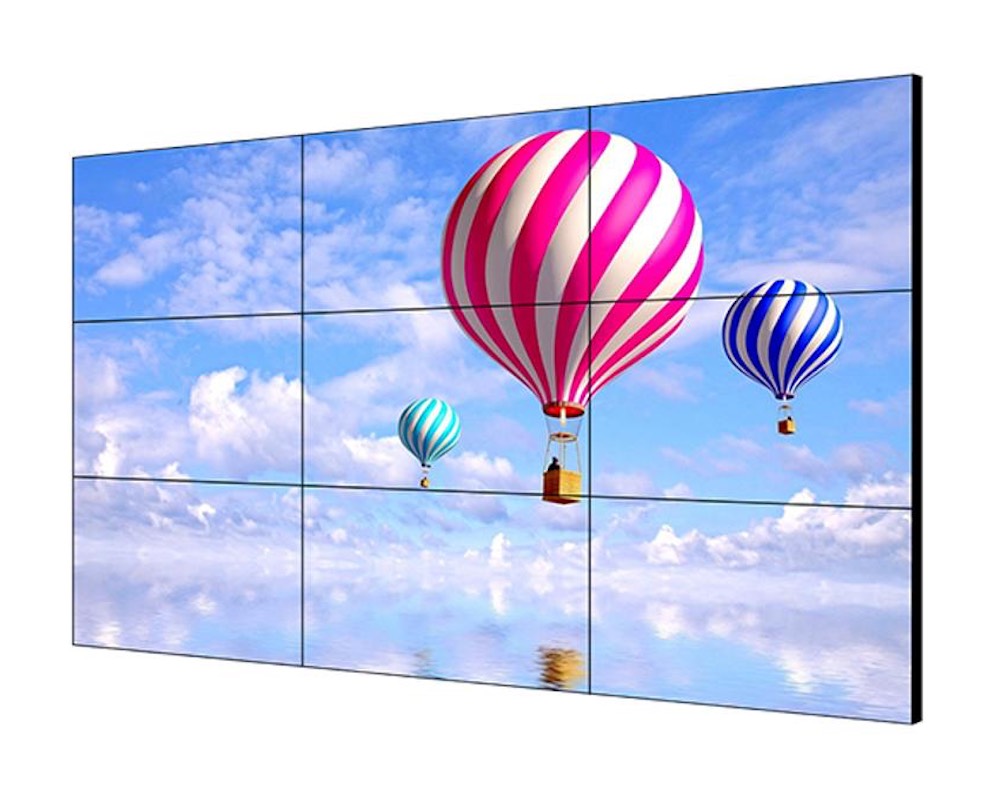

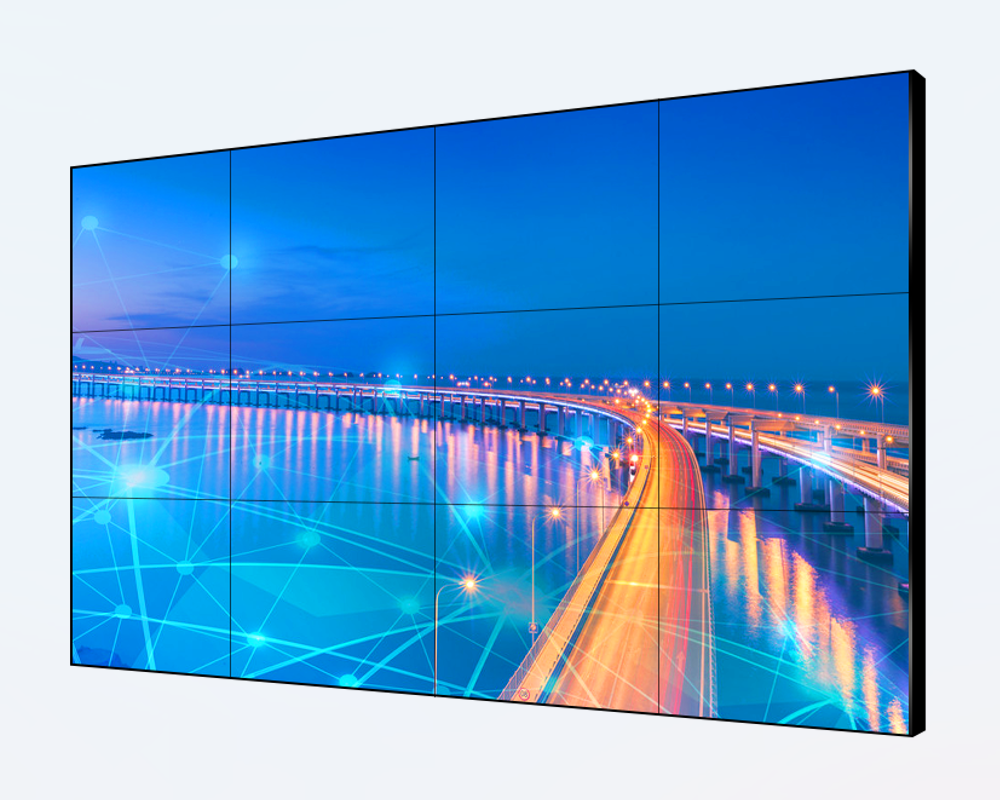

Apollo AIP-HDP5508 Commercial-Grade Video Wall

AIP-HDP5508 Copied!

55-inch Full HD display (1920 × 1080 resolution)

Premium LG panel for reliable image quality

High brightness 500 cd/m² for clear visibility

Ultra-high contrast ratio 4000:1 for deeper visuals

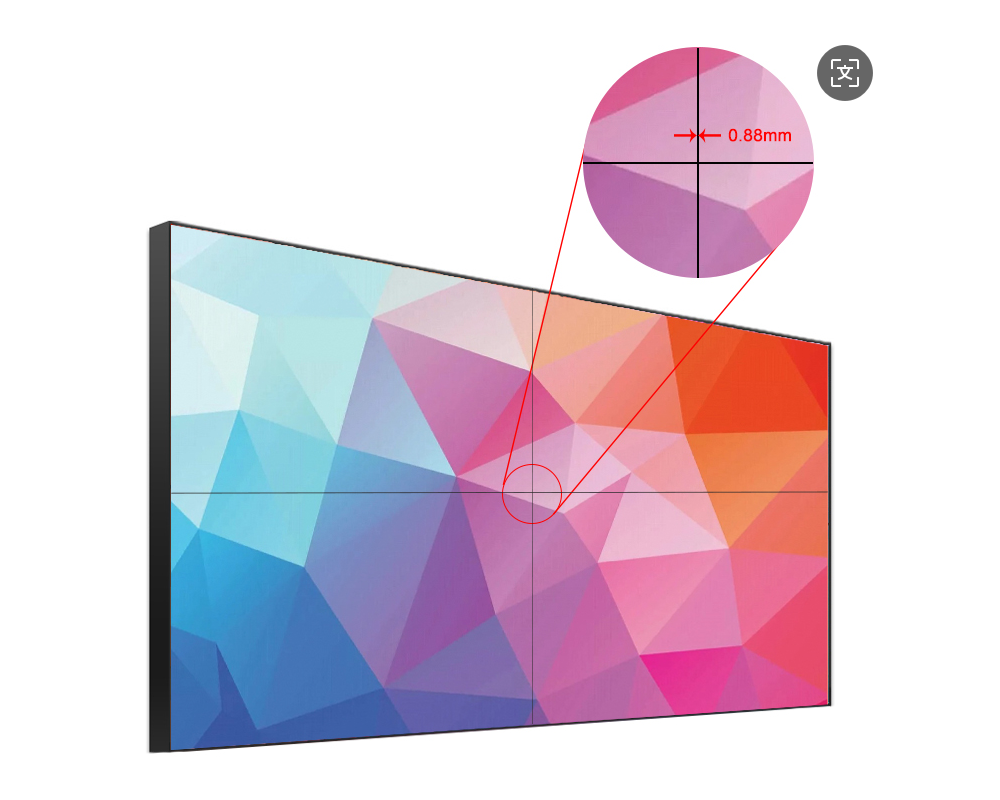

Ultra-slim bezel (0.88mm) for seamless video wall setup

Wide 178° viewing angle for consistent viewing from all sides

Fast 8ms response time for smooth content display

16.7 million colors for vivid image reproduction

• Original panel with Direct-LED backlight

• 0.88 bazel with high brightness 700 nits

• High brightness & 178° viewing angles

• Modular design for seamless splicing

• Smart light sensing & color calibration

• Android/WOS control & matrix integration

Technical Specifications

Parameter	Specification
Screen Size	55 inches
Panel Type	LG
Backlight	LED (Low Light Optimization)
Resolution	1920 × 1080
Brightness	500 cd/m²
Contrast Ratio	4000:1
Response Time	8 ms
Viewing Angle	178°(H)/178°(V)
Color Gamut	16.7 Million Colors
Dimensions	1210.48 × 681.28 × 64.5 mm
Weight	25 kg
Power Requirements	100-240V AC, 50/60Hz
Power Consumption	≤200W (Max)
Standby Power	≤0.5W
Operating Temperature	0℃ to 50℃
Storage Temperature	-20℃ to 60℃
Humidity Range	10% to 90%
I/O Ports	• HDMI 1.4 ×1 • DVI-D ×1 • RS232 Input ×1 • RS232 Output ×2 • USB Service Port ×1 (Firmware Upgrade)
Chassis Color	Black
Bezel Width	0.88 mm
Package Contents	• Network cable ×1 • Power Cable ×1 • Remote Control ×1 • Wall Mount Brackets ×4 • Mounting Screws ×8 • RS232 Adapter ×1 • Warranty Card ×1 • User Manual ×1
