Apollo AIPHD-P5509S LCD Video Wall
AIPHD-P5509S
Copied!
Key Features
- 55-inch Full HD display (1920 × 1080 resolution)
- Ultra-high brightness 700 cd/m² for superior visibility
- Premium BOE panel (DV550FHM-NVE)
- Strong contrast ratio 4000:1 for sharp image quality

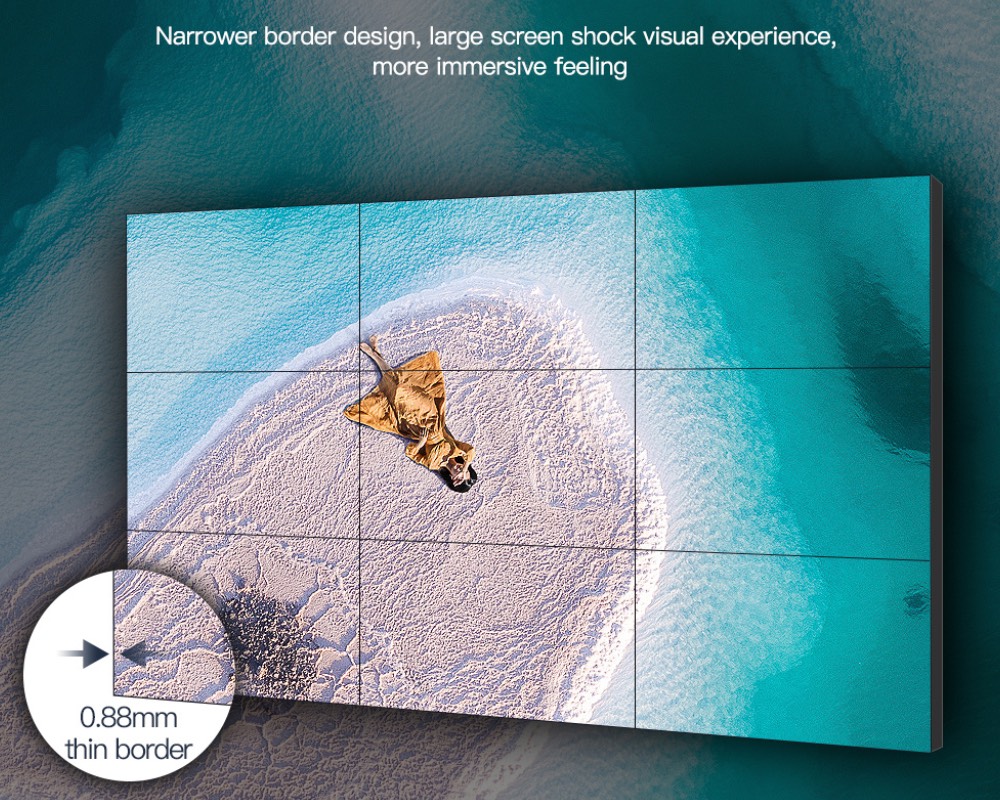

- Ultra-narrow bezel (0.88mm) for near-seamless video wall effect
- Fast 8ms response time for smooth video playback
- Wide 178° viewing angle (H/V) for consistent visuals
- 16.7 million colors for rich and natural display
• BOE original panel with Direct-LED backlight
• 0.88 bazel with high brightness 700 nits
• High brightness & 178° viewing angles
• Modular design for seamless splicing
• Smart light sensing & color calibration
• Android/WOS control & matrix integration
Technical Specifications
| P5509S Model Specifications | |
|---|---|
| Model | AIPHD-P5509S |
| Screen Size | 55 inches |
| Panel | BOE/DV550FHM-NVE |
| Backlight | LED backlight |
| Resolution | 1920×1080 |
| Brightness | 700cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Viewing Angle | 178°/178° (H/V) |
| Display Color | 16.7M |
| Weight | 25 kg |
| Power Supply | 100-240V, 50-60Hz |
| Max Power Consumption | ≤240W |
| Standby Power | ≤0.5W |
| Operating Temperature | 0℃～50℃ |
| Storage Temperature | -20℃～60℃ |
| Connectivity | HDMI ×1, DVI ×1, RS232 IN ×1, RS232 OUT ×2 |
| Accessories | Remote Control, Power Cord, Network Cable, 4×Hook, 8×Screw, RS232 Adapter |
| Certification | CoC, Warranty Card |
