Apollo AIPHD-P5509 Commercial Grade Display
AIPHD-P5509
Copied!
Key Features
- 55-inch Full HD display (1920 × 1080 resolution)
- Commercial BOE panel (DV550FHM-NVD)
- Standard brightness 500 cd/m² for clear indoor visibility

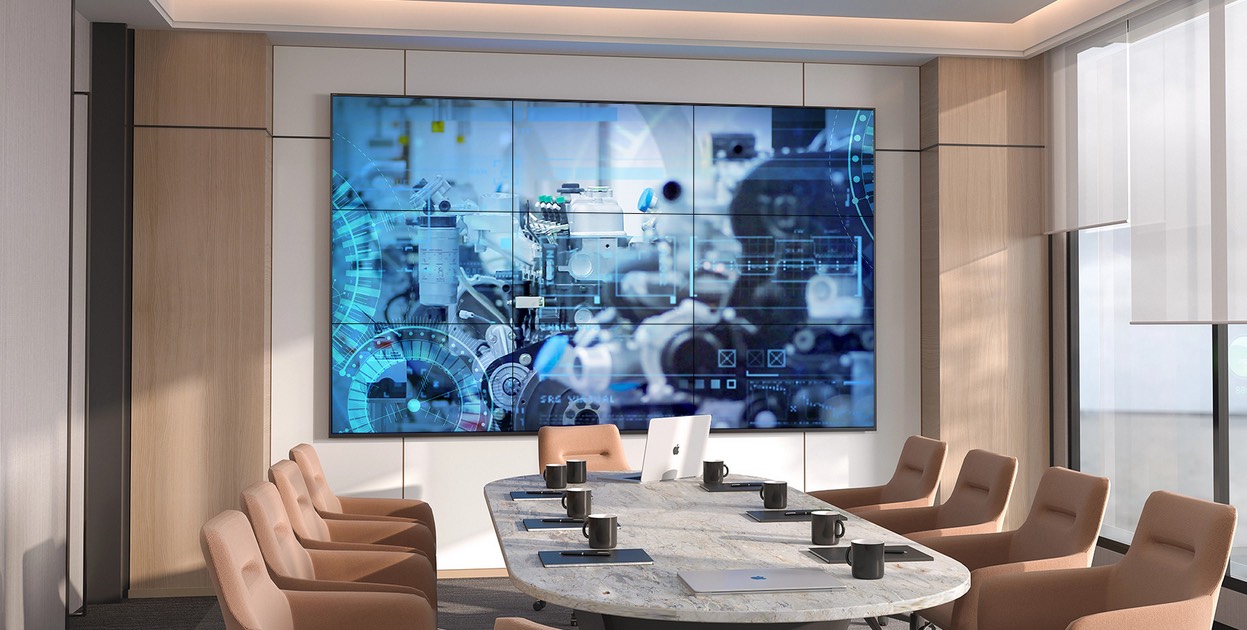

- Ultra-narrow bezel (0.88mm) for seamless video wall integration
- High contrast ratio 4000:1 for sharp image depth
- Fast 8ms response time for smooth video playback
- Wide 178° viewing angle (H/V) for consistent visuals
- 16.7 million colors for rich and natural image output
- Energy-efficient LED backlight system
• BOE original DID panel for vivid 16.7M colors

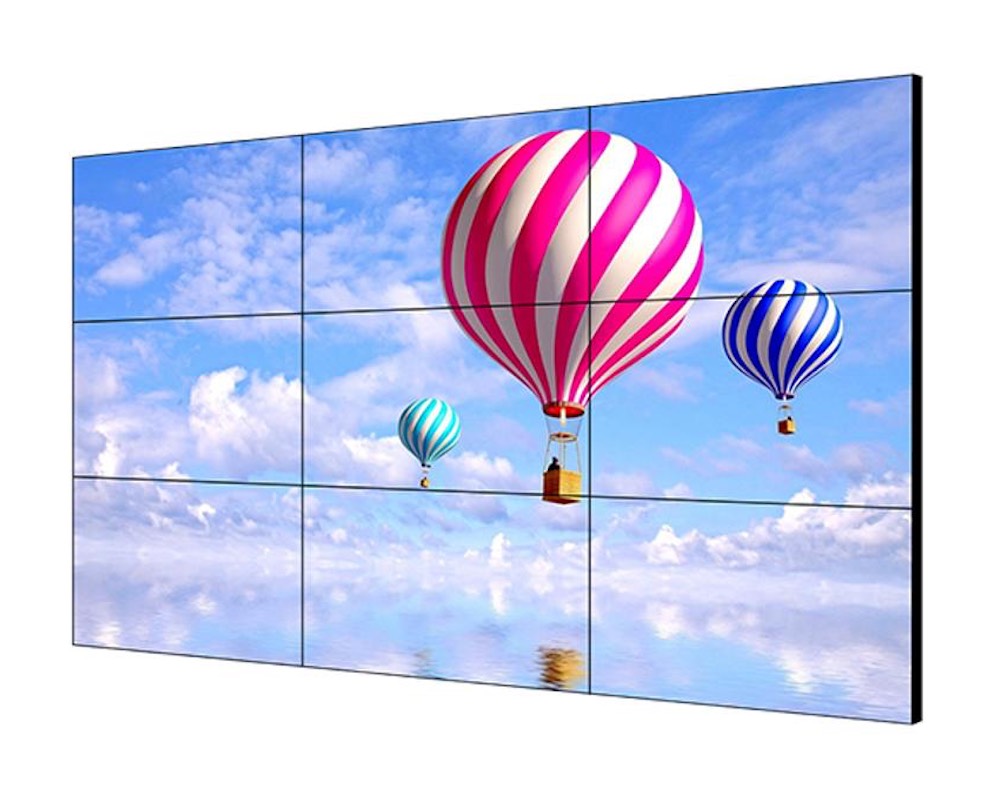

• Ultra-narrow 0.88mm bezel for seamless splicing
• Intelligent light-sensing and auto signal switching
• Energy-efficient (<0.5W standby) and 500cd/m² brightness
• Android/PC control and HDMI/DVI/USB compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AIPHD-P5509 |
| Screen Size | 55 inches |
| Panel | BOE/DV550FHM-NVD |
| Backlight | LED backlight |
| Resolution | 1920 × 1080 |
| Brightness | 500 cd/m² |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Viewing Angle | 178°(H)/178°(V) |
| Display Color | 16.7 Million |
| Weight | 25 kg |
| Power Supply | 100-240V, 50-60Hz |
| Maximum Power | ≤ 240W |
| Standby Power | ≤ 0.5W |
| Operating Temperature | 0℃ to 50℃ |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -20℃ to 60℃ |
| Storage Humidity | 10% to 90% |
| Connectivity | HDMI ×1, DVI ×1, RS232 IN ×1, RS232 OUT ×2 |
| Product Dimensions | 1210.48 × 681.28 × 60.24 mm |
| Bezel Width | 0.88 mm |
| Color | Black |
| Accessories | Remote Control, Power Cord, Network Cable, 4× Hooks, 8× Screws, RS232 Adapter |
| Certification | CoC Included |
| Warranty | 1 Year (with Warranty Card) |
