Apollo AIP9679-Q Android 14.0 Interactive Flat Panel
AIP9679-Q
Copied!
Key Features
- 4K Ultra HD display (55”–98”) with wide 178° viewing angle
- 20-point infrared multi-touch with smooth writing & ±1mm accuracy
- Android 14 system with Quad-core A73 CPU, 4GB RAM + 32GB storage
- Wi-Fi 6 (2.4G/5G) + Bluetooth 5.2 for stable connectivity
- Rich ports: HDMI, DP, VGA, USB 3.0/2.0, Type-C, LAN, RS232
- Anti-glare 4mm glass with 60M+ touch durability
- Dual front + back connectivity for flexible installation & use
- 30,000-hour lifespan with low power consumption & OPS support
AI feature for 9679 Q mainboard mainboard Android 14 8+128G
1. Air detection module (customized)
2. Circle scan
3. Voice translate
4. AI Q&A
5. Video recap
6. Voice input to open software
7. AI assistant
8. Dual-tip stylus
9. Magic marker
10. Aerial view
Technical Specifications
| Parameter | AP55HT | AP65HT | AP75HT | AP85HT | AP86HT | AP98HT |
|---|---|---|---|---|---|---|
| Model Series | Flat Panel (T Series 9679 LG Q ) spec | |||||
| Diagonal Size | 55inch | 65inch | 75inch | 85inch | 86inch | 98inch |
| Effective Display Area | 1209.6(H)*680.4(V) | 1428.48(H)*803.52(V) | 1650.24(H)×928.26(V) | 1872(H)×1053(V) | 1895(H)×1066(V) | 2158.85(H)*1214.35(V) |
| Display Ratio | 16:9 | |||||
| Brightness | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 1200:1 |
| Backlight Type | DLED | |||||
| Viewing Angle | 178°(V)/178°(H) | |||||
| Resolution | 3840×2160 | |||||
| Audio Output Power | 8Ω/10W×2 | 8Ω/15W×2 | ||||
| Touch Technology | Infrared Multi Touch | |||||
| Touch Points | 20 points | |||||
| Drive System | HID drive free | |||||
| Writing Surface Material | 4mm Ag anti-glare glass | |||||
| Touch Sensor Mode | Finger, writing pen, gloved hand，or other non transparent touch sensitive medium | |||||
| Touch Resolution | 32768×32768 | |||||
| Communication Port | USB 2.0 | |||||
| Min Recognition Dim | 2mm | |||||
| Response Time | ≤10ms | |||||
| Touch Accuracy | ±1mm | |||||
| Anti-Interference | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | |||||
| Calibration | Free | |||||
| Touch Durability | >60 million touches | |||||
| Touch Power Supply | USB 5.0V | |||||
| Processor | Quad-core ARM Cortex-A73 | |||||
| OS Version | Android 14 | |||||
| Memory | DDR4 4GB + Flash 32GB | |||||
| Wireless Connectivity | WiFi 2.4G+5G, Bluetooth 5.2 | |||||

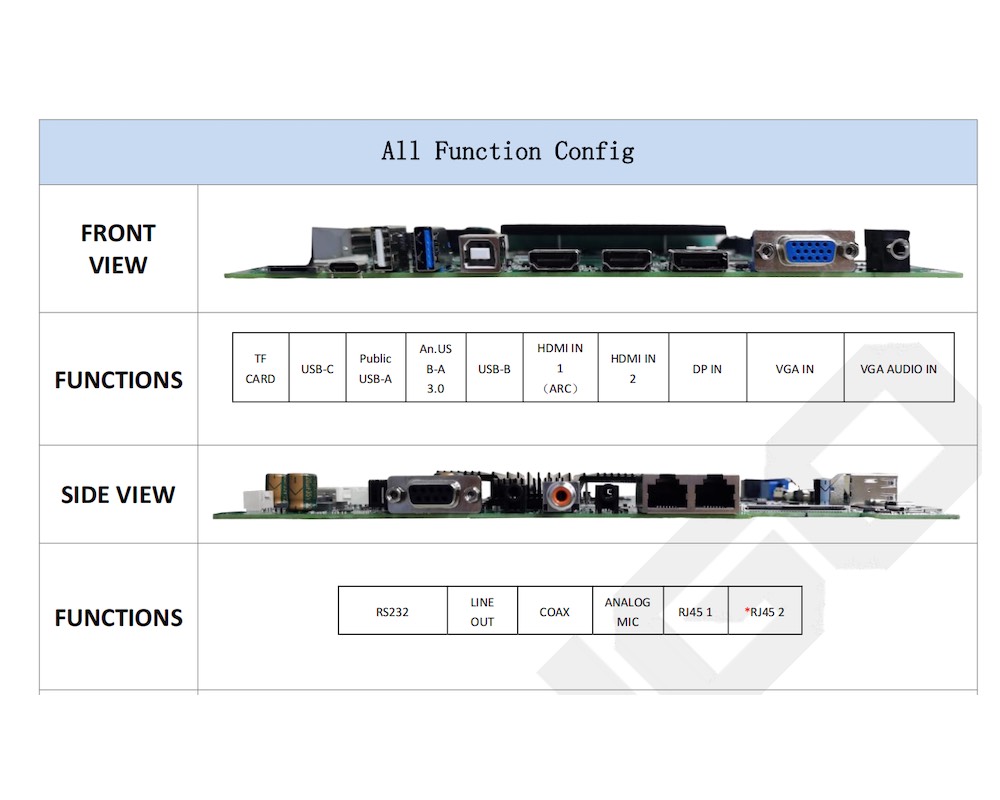

| Ports | Back Ports: (LAN IN *1 HDMI 2.0*2 RS-232*1 DP IN*1 VGA IN*1 AUDIO IN*1 Type-C*1 USB 3.0*1 MIC*1 USB 2.0*1 TFCARD*1 Earphone*1 Coaxial(RCA)*1 LAN OUT *1 TOUCH OUT*1 Optional:HDMI OUT) Front Ports:(USB3.0*3 HDMI 2.0*1 USB*1 TOUCH*1 Type-C*1) | |||||
| Accessories | Magnetic pen, Wall-Mount Bracket, Power Cord, Remote Control, WiFi antenna×2 | |||||
| Power Consumption | ≤190W | ≤210W | ≤325W | ≤420W | ≤420W | ≤500W |
| Standby Consumption | ≤0.5W | |||||
| Lifetime | 30,000 hours | |||||
| Power Supply | 100-240V, 50/60Hz | |||||
| Dimensions (W×H×D mm) | 1259.8×777.18×84.8 | 1485.2×905.7×88.3 | 1707.6×1030.9×88.3 | 1953.56×1177.9×88.3 | 1953.56×1177.9×88.3 | 2217.4×1324.18×108.3 |
| VESA Mount | 4-M8 hole site 400×400mm | 4-M8 hole site 500×400mm | 4-M8 hole site 600×400mm | 4-M8 hole site 800×400mm | 4-M8 hole site 800×400mm | 4-M8 hole site 900×600mm |
| Net Weight | 24.3kg | 37kg | 50.6kg | 66kg | 66kg | 87.1kg |
| Gross Weight | 29kg | 45.75kg | 62kg | 82kg | 82kg | 111kg |
| Package Size | 1350×890×190mm | 1600×1030×200mm | 1855×1170×200mm | 2095×1320×220mm | 2095×1320×220mm | 2358×1485×280mm |
| PC Option | H81/H110/H310 Mainboard | |||||
| Input Voltage | 18V DC | |||||
| Rated Output Current | 5A | 5A | 6A | 6A | 6A | 6A |
| Peak Output Current | 6A | 6A | 8A | 8A | 8A | 8A |
| Rated Load Power | 90W | 90W | 108W | 108W | 108W | 108W |
| OPS Interface | Canform to Intel® OPS-C JAE 80-pin connector | |||||
| OPS Dimensions | National standard: L194.6*W179.8*H42mm（42mm or 30mm） | European standard: L180*W119*H30mm | ||||
