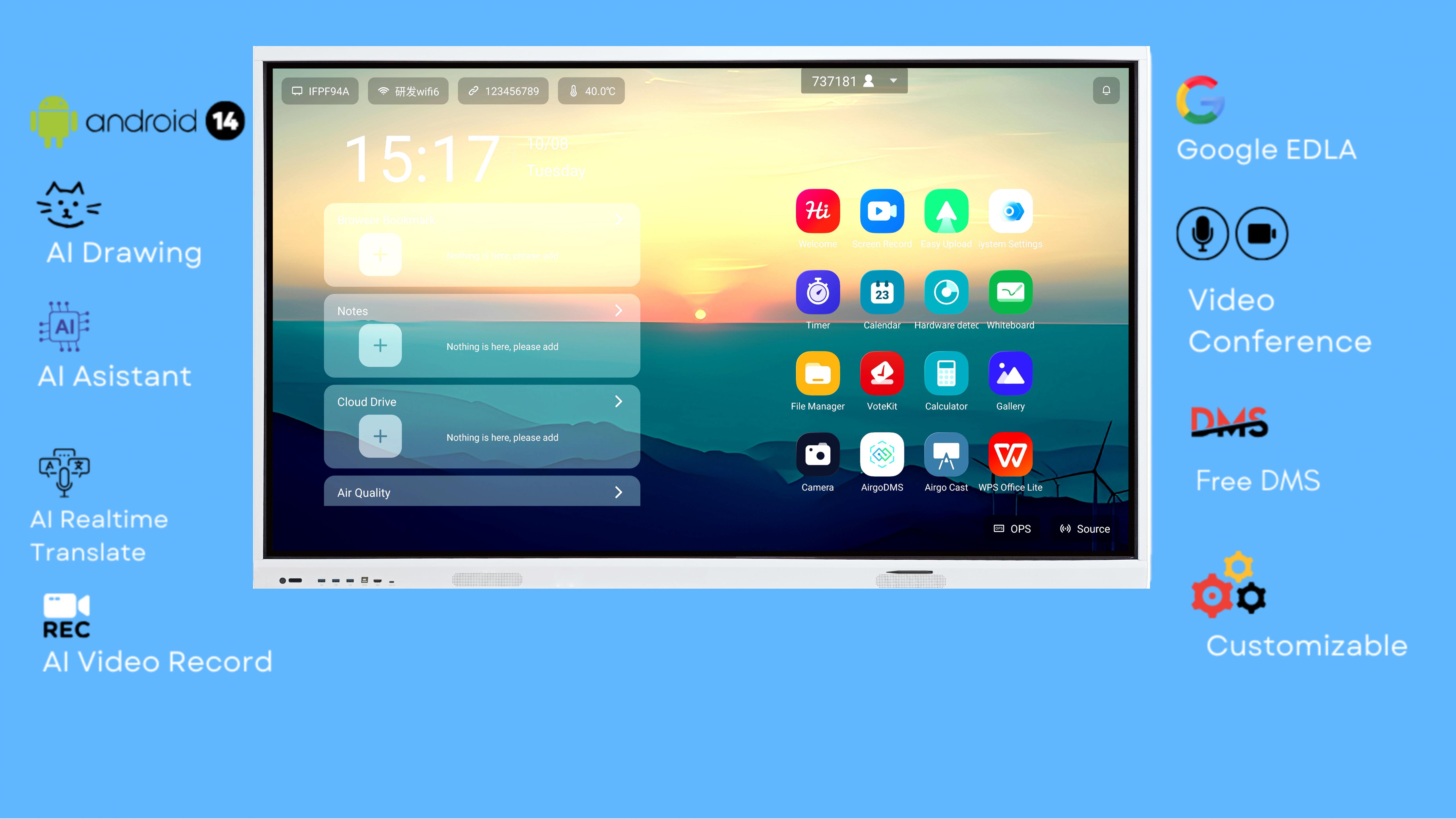

Apollo AIP3576 Google EDLA-Certified Android 14 Interactive Flat Pane
AIP3576
Copied!
Key Features
- 4K Ultra HD display (55”–98”) with Android 14 AI-powered system
- High-performance CPU (A72 + A53) with 16GB RAM + 256GB storage
- 20-point infrared multi-touch with smooth writing (±1mm accuracy)
- Built-in 48MP camera + 8-array microphone for smart collaboration
- Wi-Fi 6 + Bluetooth 5.2 for fast connectivity
- Rich ports: HDMI, DP, Type-C, USB 3.0/2.0, LAN, RS232
- Anti-glare glass with 60M+ touch durability & 30,000-hour lifespan
- Full OPS support with extensive front + back connectivity
4K Touch Screen Performance
Ultra-responsive 20-point touch screen with ±1mm precision, anti-glare glass, and explosion-proof design.
Android 14 + Multi-OS Flexibility
Google EDLA-certified Android 14 OS + optional Windows compatibility for hybrid teaching workflows.
Wireless screen mirroring + split-screen collaboration for group work.
Smart Education Cloud Ecosystem
Save lessons, notes, and reports to the cloud via the interactive flat panel, with replay functionality.
Built for Modern Classrooms and meeting room
Technical Specifications
| Specification | |||||||
|---|---|---|---|---|---|---|---|
| Model | AP55HT | AP65HT | AP75HT | AP85HT | AP86HT | AP98HT | |
| Display Parameter | Diagonal Size | 55inch | 65inch | 75inch | 85inch | 86inch | 98inch |
| Effective Display Area | 1209.6(H)*680.4(V) | 1428.48(H)*803.52(V) | 1650.24(H)×928.26(V) | 1872(H)×1053(V) | 1895(H)×1066(V) | 2158.85(H)*1214.35(V) | |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness | 320cd/㎡ | 320cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 1200:1 | |
| Backlight Type | DLED | DLED | DLED | DLED | DLED | DLED | |
| Viewing Angle | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | |
| Resolution | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840(H) X 2160(V) | 3840（H) X 2160(V) | |
| Audio Output Power | 8Ω/10W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | |
| Touch | Touch technology | Infrared Multi Touch Technology | Infrared Multi Touch Technology | Infrared Multi Touch Technology | Infrared Multi Touch Technology | Infrared Multi Touch Technology | Infrared Multi Touch Technology |
| Touch Points | 20 points touch | 20 points touch | 20 points touch | 20 points touch | 20 points touch | 20 points touch | |
| Drive | HID drive free | HID drive free | HID drive free | HID drive free | HID drive free | HID drive free | |
| Writing surface material | 4mm Ag anti glare glass | 4mm Ag anti glare glass | 4mm Ag anti glare glass | 4mm Ag anti glare glass | 4mm Ag anti glare glass | 4mm Ag anti glare glass | |
| Touch Screen Sensor Mode | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | |
| Resolution | 32768X32768 | 32768X32768 | 32768X32768 | 32768X32768 | 32768X32768 | 32768X32768 | |
| Communication Port | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | USB 2.0 | |
| Min Recognition Dim | 2mm | 2mm | 2mm | 2mm | 2mm | 2mm | |
| ResponseTime | ≤8ms | ≤8ms | ≤8ms | ≤8ms | ≤8ms | ≤8ms | |
| Touch Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm | |
| Anti-Interference | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | |
| Calibration | Calibration free | Calibration free | Calibration free | Calibration free | Calibration free | Calibration free | |
| Touch Times | More than 60 million times in the same position | More than 60 million times in the same position | More than 60 million times in the same position | More than 60 million times in the same position | More than 60 million times in the same position | More than 60 million times in the same position | |
| Touch Power supply Mode | USB 5.0V power supply | USB 5.0V power supply | USB 5.0V power supply | USB 5.0V power supply | USB 5.0V power supply | USB 5.0V power supply | |
| Android Specs | Android Frequency | Quad core ARM Cortex-A72 + Quad core Cortex- A53 | Quad core ARM Cortex-A72 + Quad core Cortex- A53 | Quad core ARM Cortex-A72 + Quad core Cortex- A53 | Quad core ARM Cortex-A72 + Quad core Cortex- A53 | Quad core ARM Cortex-A72 + Quad core Cortex- A53 | Quad core ARM Cortex-A72 + Quad core Cortex- A53 |
| System Version | Android 14 | Android 14 | Android 14 | Android 14 | Android 14 | Android 14 | |
| Memory | DDR4 16G | DDR4 16G | DDR4 16G | DDR4 16G | DDR4 16G | DDR4 16G | |
| FLASH | 256G | 256G | 256G | 256G | 256G | 256G | |
| WIFI | wifi6 | wifi6 | wifi6 | wifi6 | wifi6 | wifi6 | |
| Bluetooth | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | |
| Back input | RS-232 | 1 | 1 | 1 | 1 | 1 | 1 |
| MIC IN | 1 | 1 | 1 | 1 | 1 | 1 | |
| RJI45 | 1 | 1 | 1 | 1 | 1 | 1 | |
| HDMI 2.0 | 2 | 2 | 2 | 2 | 2 | 2 | |
| DP IN | 1 | 1 | 1 | 1 | 1 | 1 | |
| Type-C | 1 | 1 | 1 | 1 | 1 | 1 | |
| USB 3.0 | 2 | 2 | 2 | 2 | 2 | 2 | |
| USB 2.0 | 1 | 1 | 1 | 1 | 1 | 1 | |
| TF CARD | 1 | 1 | 1 | 1 | 1 | 1 | |
| Back output | SPDIF | 1 | 1 | 1 | 1 | 1 | 1 |
| LINE OUT | 1 | 1 | 1 | 1 | 1 | 1 | |
| RJI45 OUT | 1 | 1 | 1 | 1 | 1 | 1 | |
| HDMI TOUCH | 2 | 2 | 2 | 2 | 2 | 2 | |
| HDMI OUT | 1 | 1 | 1 | 1 | 1 | 1 | |
| Type-C OUT | 1 | 1 | 1 | 1 | 1 | 1 | |
| Front port and function | USB3.0 | 3 | 3 | 3 | 3 | 3 | 3 |
| HDMI 2.0 | 1 | 1 | 1 | 1 | 1 | 1 | |
| USB TOUCH | 1 | 1 | 1 | 1 | 1 | 1 | |
| Type-C | 1 | 1 | 1 | 1 | 1 | 1 | |
| Front button | Power Button On/Off | 1 | 1 | 1 | 1 | 1 | 1 |
| Accessories | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs | Magnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc,WiFi antenna X2pcs |
| Others | Power consumption of the whole machine (excluding OPS) | ≤190W | ≤210W | ≤325W | ≤420W | ≤420W | ≤500W |
| Standby consumption | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | |
| Lifetime | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | |
| power supply | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | |
| Demission | 1259.8*777.18*84.8（mm） | 1485.2*905.7*88.3（mm） | 1707.6*1030.9*88.3（mm） | 1953.56*1177.9*88.3（mm） | 1953.56*1177.9*88.3（mm） | 2217.4*1324.18*108.3（mm） | |
| VESA hole site | 4-M8 hole site 400mm*400mm | 4-M8 hole site 500mm*400mm | 4-M8 hole site 600mm*400mm | 4-M8 hole site 800mm*400mm | 4-M8 hole site 800mm*400mm | 4-M8 hole site 900mm*600mm | |
| Net Weight | 24.3KG | 37KG | 50.6KG | 66KG | 66KG | 87.1kg | |
| Gross Weight | 29KG | 45.75KG | 62KG | 82KG | 82KG | 111kg | |
| package size | 1350*890*190mm | 1600*1030*200mm | 1855*1170*200mm | 2095*1320*220mm | 2095*1320*220mm | 2358*1485*280mm | |
| Built-in camera | 8000*6000（48 million pixels） | 8000*6000（48 million pixels） | 8000*6000（48 million pixels） | 8000*6000（48 million pixels） | 8000*6000（48 million pixels） | 8000*6000（48 million pixels） | |
| Built-in microphone | 8 array high-resolution microphones | 8 array high-resolution microphones | 8 array high-resolution microphones | 8 array high-resolution microphones | 8 array high-resolution microphones | 8 array high-resolution microphones | |
| PC（Optional） | PC Option | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard |
| Input Voluge | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | |
| Rated Output Current | 5A | 5A | 6A | 6A | 6A | 6A | |
| Peak Output Current | 6A | 6A | 8A | 8A | 8A | 8A | |
| Rated Load Power | 90W | 90W | 108W | 108W | 108W | 108W | |
| lnterface | Canform to Intel® OPS-C JAE 80-pin connector | Canform to Intel® OPS-C JAE 80-pin connector | Canform to Intel® OPS-C JAE 80-pin connector | Canform to Intel® OPS-C JAE 80-pin connector | Canform to Intel® OPS-C JAE 80-pin connector | Canform to Intel® OPS-C JAE 80-pin connector | |
| National standard OPS size | L194.6*W179.8*H42mm（42mm or 30mm） | L194.6*W179.8*H42mm（42mm or 30mm） | L194.6*W179.8*H42mm（42mm or 30mm） | L194.6*W179.8*H42mm（42mm or 30mm） | L194.6*W179.8*H42mm（42mm or 30mm） | L194.6*W179.8*H42mm（42mm or 30mm） | |
| European standard OPS size | L180*W119*H30mm | L180*W119*H30mm | L180*W119*H30mm | L180*W119*H30mm | L180*W119*H30mm | L180*W119*H30mm |
