Apollo AIP3576 Android 14 Interactive Flat Panel
AIP3576
Copied!
Key Features
- 4K Ultra HD display (55”–98”) with up to 450 nits brightness
- 20-point infrared touch with fast response (≤8ms) & ±1mm accuracy
- Android 14 system with 16GB RAM + 256GB storage
- Wi-Fi 6 + Bluetooth 5.2 for stable connectivity
- Rich ports: HDMI, USB 3.0/2.0, Type-C, DP, RS232, LAN
- Anti-glare 4mm glass with 60M+ touch lifespan
- High-performance CPU (A72 + A53 cores) for smooth operation
- Durable 30,000-hour lifespan with OPS PC support
Certified Performance & Latest OS
Google EDLA-certified with Android 14 for secure, optimized performance, long-term support, and full educational app access.
Vivid 4K Touch & Durable Design
20-point ultra-responsive touch (±1mm accuracy), 4K Ultra HD clarity, anti-glare glass, and explosion-proof design for safe, engaging interaction.
Seamless Multi-OS Collaboration
Run Android 14 or optional Windows, with wireless screen mirroring and split-screen for efficient teaching and teamwork.
Education Cloud & Replay
Easily save and replay lessons from the cloud, enabling continuous review and remote learning with simple functionality.
Technical Specifications
| Interactive Flat Panel (T Series 3576 16+256G without camera LG Q )（X） | |||||||||
| Model | AP55HT | AP65HT | AP75HT | AP85HT | AP86HT | AP98HT | |||
| Display Parameter | Diagonal Size | 55inch | 65inch | 75inch | 85inch | 86inch | 98inch | ||
| Effective Display Area | 1209.6(H)*680.4(V) | 1428.48(H)*803.52(V) | 1650.24(H)×928.26(V) | 1872(H)×1053(V) | 1895(H)×1066(V) | 2158.85(H)*1214.35(V) | |||
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |||
| Brightness | 320cd/㎡ | 320cd/㎡ | 450cd/㎡ | 350cd/㎡ | 350cd/㎡ | 350cd/㎡ | |||
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 1200:1 | |||
| Backlight Type | DLED | DLED | DLED | DLED | DLED | DLED | |||
| Viewing Angle | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | 178°(V)/178°(H) | |||
| Resolution | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840（H) X 2160(V) | 3840(H) X 2160(V) | 3840（H) X 2160(V) | |||
| Audio Output Power | 8Ω/10W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | 8Ω/15W*2 | |||
| Touch | Touch technology | Infrared Multi Touch Technology | |||||||
| Touch Points | 20 points touch | ||||||||
| Drive | HID drive free | ||||||||
| Writing surface material | 4mm Ag anti glare glass | ||||||||
| Touch Screen Sensor Mode | Finger, writing pen, hand with gloves or other non transparent touch sensitive medium | ||||||||
| Resolution | 32768X32768 | ||||||||
| Communication Port | USB 2.0 | ||||||||
| Min Recognition Dim | 2mm | ||||||||
| ResponseTime | ≤8ms | ||||||||
| Touch Accuracy | ±1mm | ||||||||
| Anti-Interference | Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux | ||||||||
| Calibration | Calibration free | ||||||||
| Touch Times | More than 60 million times in the same position | ||||||||
| Touch Power supply Mode | USB 5.0V power supply | ||||||||
| Android Specs | Android Frequency | Quad core ARM Cortex-A72 + Quad core Cortex- A53 | |||||||
| System Version | Android 14 | ||||||||
| Memory | DDR4 16G | ||||||||
| FLASH | 256G | ||||||||
| WIFI | wifi6 | ||||||||
| Bluetooth | 5.2 | ||||||||

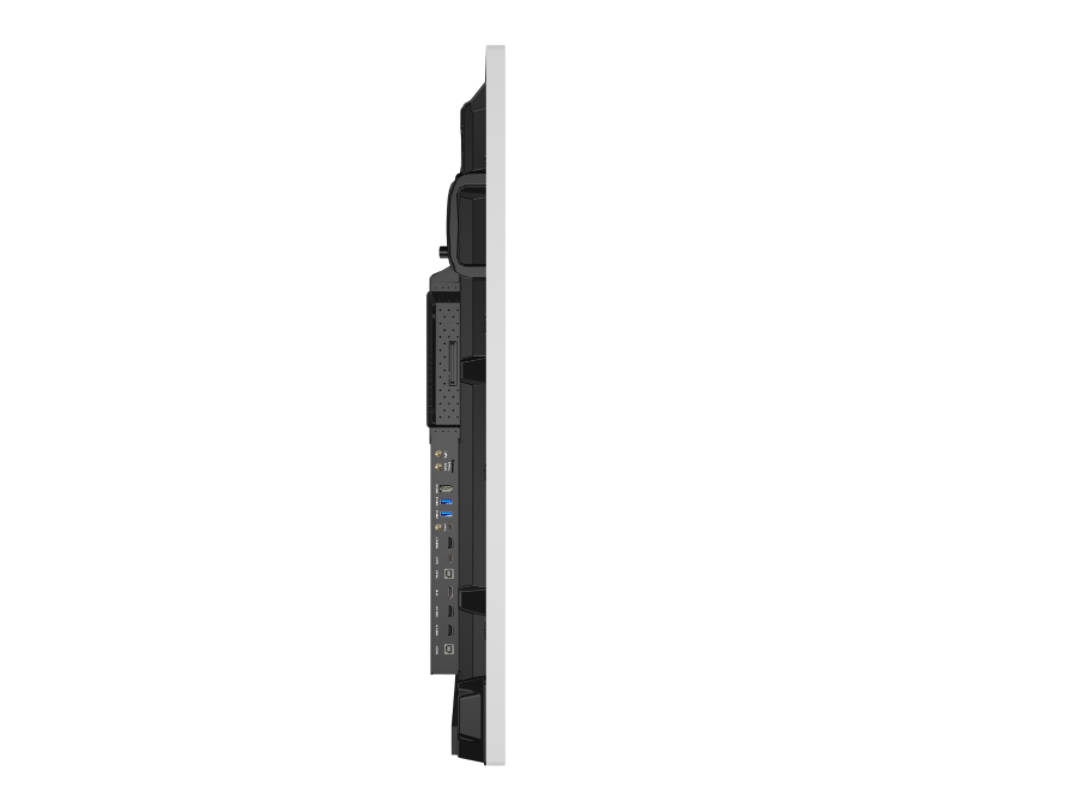

| Back port | Input | RS-232 | 1 | ||||||
| MIC IN | 1 | ||||||||
| RJI45 | 1 | ||||||||
| HDMI 2.0 | 2 | ||||||||
| DP IN | 1 | ||||||||
| Type-C | 1 | ||||||||
| USB 3.0 | 2 | ||||||||
| USB 2.0 | 1 | ||||||||
| TF CARD | 1 | ||||||||
| OUT | SPDIF | 1 | |||||||
| LINE OUT | 1 | ||||||||
| RJI45 OUT | 1 | ||||||||
| HDMI TOUCH | 2 | ||||||||
| HDMI OUT | 1 | ||||||||
| Type-C OUT | 1 | ||||||||

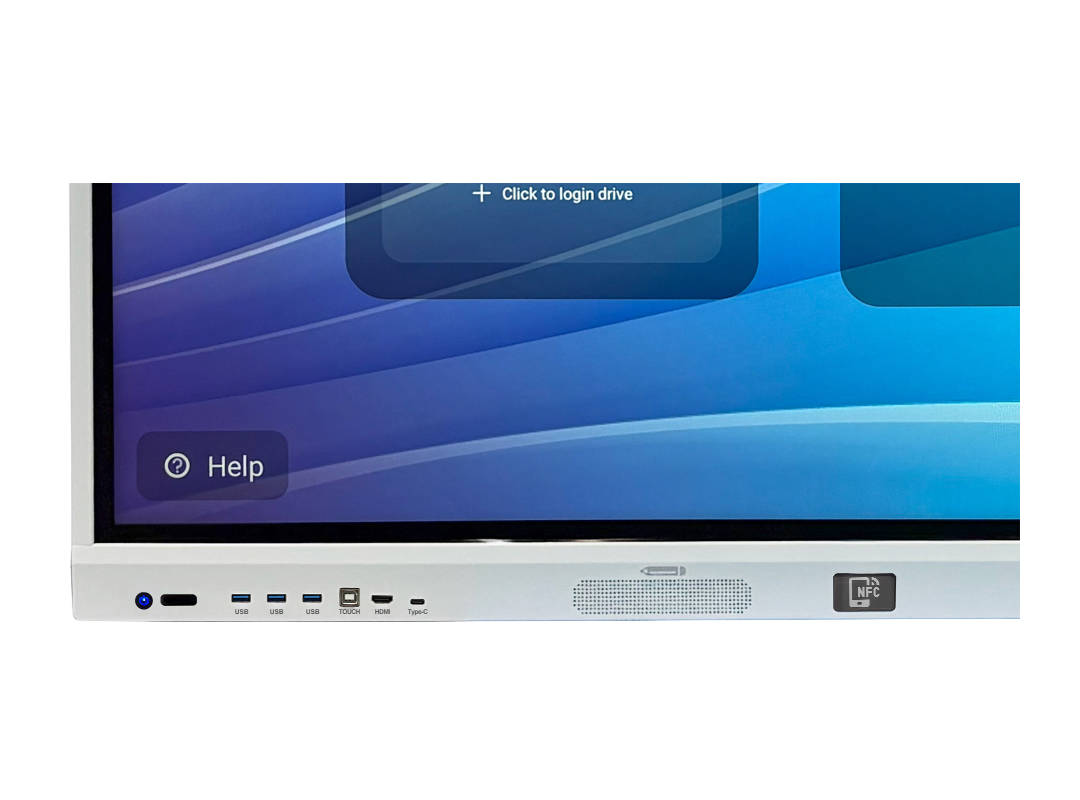

| Front port and function | USB3.0 | 3 | |||||||
| HDMI 2.0 | 1 | ||||||||
| USB TOUCH | 1 | ||||||||
| Type-C | 1 | ||||||||
| Front button | Power Button On/Off | 1 | |||||||
| Accessories | Magnetic whiteboard Pen X2pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc | ||||||||
| Others | Power consumption of the whole machine (excluding OPS) | ≤190W | ≤210W | ≤325W | ≤420W | ≤420W | ≤500W | ||
| Standby consumption | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | |||
| Lifetime | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | 30000 hours | |||
| power supply | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | |||
| Demission | 1259.8*777.18*84.8（mm） | 1485.2*905.7*88.3（mm） | 1707.6*1030.9*88.3（mm） | 1953.56*1177.9*88.3（mm） | 1953.56*1177.9*88.3（mm） | 2217.4*1324.18*108.3（mm） | |||
| VESA hole site | 4-M8 hole site 400mm*400mm | 4-M8 hole site 500mm*400mm | 4-M8 hole site 600mm*400mm | 4-M8 hole site 800mm*400mm | 4-M8 hole site 800mm*400mm | 4-M8 hole site 900mm*600mm | |||
| Net Weight | 24.3KG | 37KG | 50.6KG | 66KG | 66KG | 87.1kg | |||
| Gross Weight | 29KG | 45.75KG | 62KG | 82KG | 82KG | 111kg | |||
| package size | 1350*890*190mm | 1600*1030*200mm | 1855*1170*200mm | 2095*1320*220mm | 2095*1320*220mm | 2358*1485*280mm | |||
| PC（Optional） | PC Option | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | H81/H110/H310 Mainboard | ||
| Input Voluge | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | 18V DC | |||
| Rated Output Current | 5A | 5A | 6A | 6A | 6A | 6A | |||
| Peak Output Current | 6A | 6A | 8A | 8A | 8A | 8A | |||
| Rated Load Power | 90W | 90W | 108W | 108W | 108W | 108W | |||
| lnterface | Canform to Intel® OPS-C JAE 80-pin connector | ||||||||
| National standard OPS size | L194.6*W179.8*H42mm（42mm or 30mm） | ||||||||
| European standard OPS size | L180*W119*H30mm | ||||||||
