Apollo AIP-Smart E-blackboard
Key Features
- Large Dual Sizes: 75" & 86" UHD Display (4K 3840×2160)
- Smart E-Blackboard Design (Touch + Traditional Blackboard combination)
- Projected Capacitive Touch (10-point multi-touch)
- Anti-explosion 4mm tempered glass for safety & durability
- Android 6.0 built-in system (Quad-core Cortex A53)
- Ultra-wide 178° viewing angle for classroom visibility
- High lifespan: 50,000 hours usage
- Multiple connectivity options (HDMI, USB, VGA, LAN, AV, RS232, etc.)
- Dual 15W speakers for clear classroom audio
- Low power standby (<0.5W) energy efficient design
- Supports Windows / Mac / Linux / Android compatibility

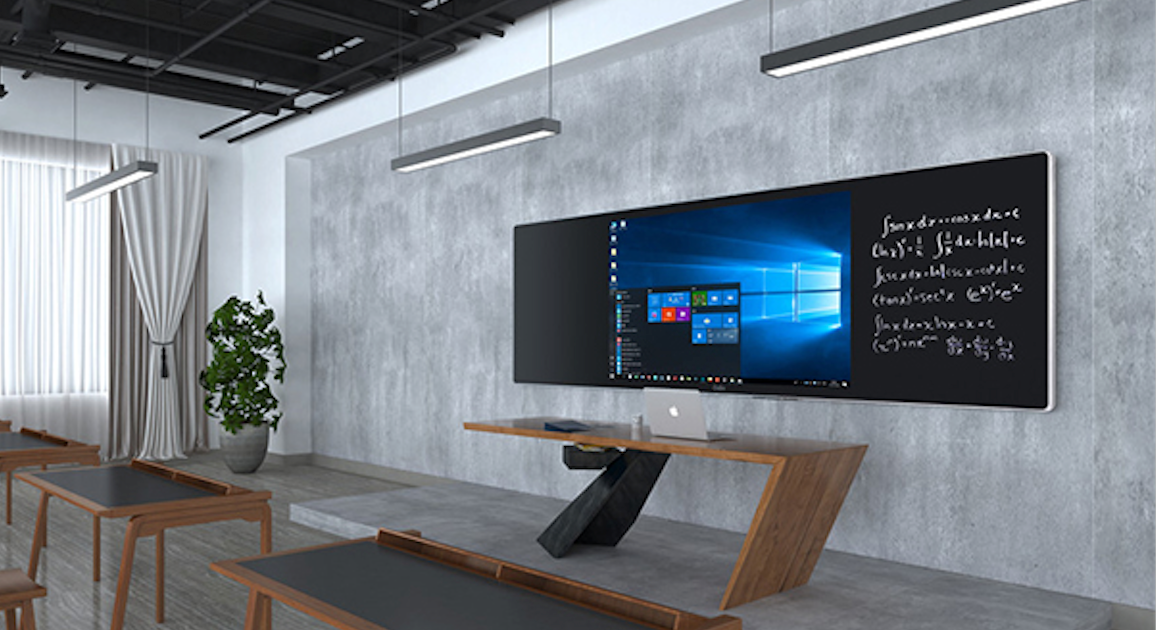

Combination of traditional blackboard and interactive LED display
Simple and stylish design for your modern classroom
All in one solution with high integration for all your classroom tools
Technical Specifications
Thinkpanel Smart e-blackboard | |||
Item | Model | AP-75 SE | AP-86 SE |
Technical | Size | 75" | 86” |
Overall Size (L*W*D) | 4250*1250*122 mm (include wall mount bracket) | 4250*1250*130 mm (include wall mount bracket) | |
Packing Size | Middle touch led: 2148*240*1370mm Left and right two blackboards: 1222.5*342*1340mm | ||
G.W/N.W | ≤134.2kg / ≤103.9kg | 134.2kg / 103.9kg | |
Input Voltage | AC（100-240）V-50/60HZ | ||
Max Consumption (not include OPS) | ≤300W | ||
OPS Max Power | ≤100W | ||
Standby Power | ≤0.5W | ||
Screen | Display Area | 1650.7 (H) * 929 (V) mm | 1896 (H) * 1067 (V) mm |
Aspect Ratio | 16:09 | ||
Backlight Type | LED | ||
Resolution | 3840 (H) * 2160 (V) (UHD) | ||
Brightness | 300-350 cd/㎡ | ||
Contrast Ratio | ≥1200:1 (Typ.) | ||
Response Time | 8ms | ||
View Angle | 178° | ||
Saturation (x% NTSC) | ＞72% | ||
Refresh Rate | 60HZ | ||
Colors | 8bit, 1.07B | ||
Lifespan | 50,000 hrs | ||
Surface | 4mm anti-explosion tempered glass | ||
OS | Android Version | embedded Android 6.0 | |
CPU | MSD648 Cortex A53 Quad-core 1.5GHz | ||
RAM | 2 GB DDR3 | ||
ROM | 8 GB | ||
Extension Storage | SD card can be extended to 128G (Fat 32) | ||
TV System | ATV | PAL, SECAM, NTSC | |
Sound System | BG /DK /I/L | ||
Channel | 200 | ||
Video Decoding | 3D image filtering, 3D image denoising, 3D image self-adaptive filtering, etc. | ||
Speaker | 8Ω/15W*2 | ||
I/O Ports | RJ45/LAN | *1 | |
VGA IN | *1 | ||
AUDIO IN | *1 | ||
YPBPR | *1 | ||
AV IN | *1 | ||
AV OUT | *1 | ||
Earphone OUT | *1 | ||
SPDIF OUT | *1 | ||
HDMI IN | *2 | ||
Touch USB | *1 | ||
TR Reader | *1 | ||
RS232 | *1 | ||
USB2.0 | *2 | ||
HDMI | *1 | ||
Bottom Ports | USB3.0 | *1 | |
USB2.0 | *2 | ||
USB TOUCH | *1 | ||
Touch | Touch Technology | projected capacitive technology (10 touch points) | |
Input Methods | finger/capacitive stylus | ||
Calibration Accuracy | ≤2mm | ||
Connectivity | USB | ||
Theoretical Touch Times | unlimited | ||
Scan Rate | 10ms/frame | ||
Report Rate | 100 | ||
Driver | driver free | ||
Operation System | windows7/10, Mac OS, Linux, Android | ||
Packing List | Touch LED Panel and Blackboard | *1 | |
Capacitive Stylus | *1 | ||
Remote Control (include battery) | *1 | ||
User Manual | *1 | ||
Maintenance Card | *1 | ||
Certificate of Quality | *1 | ||
2.0m Power Cable | *1 | ||
Wall Mount Bracket | *1 (set) | ||
Chalk | *1 (box) | ||
Installation Component | *1 (set) | ||
Silica Gel Corner Guards | *4 | ||
Water Soluble Dust-Free Chalk | *1 (box) (optional) | ||
Magnetic Chalkboard Eraser(detachable) | *1 (optional) | ||
Blackboard Eraser | *1 | ||
Whiteboard Magnetic Nail | *2 | ||
Extendable Pointer (capactive) | *1 (optional) | ||
Cross-head Screwdriver | *1 | ||
