Apollo AIP-L5HN Series Android 11 4+32G IN-Display Interactive Flat Panel
Key Features
- 4K Ultra HD display for sharp, vibrant visuals
- High-precision infrared touch (±1mm accuracy)
- Multi-touch support (20–60 touch points)
- Smooth performance with powerful Android system

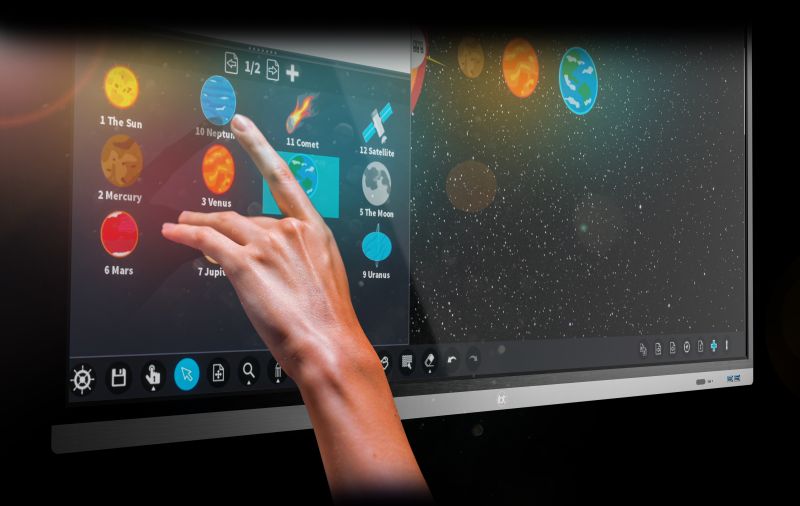

- Built-in whiteboard & annotation tools
- Anti-glare toughened glass for eye comfort
- Powerful front speakers (up to 40W)
- WiFi & Bluetooth for easy wireless connectivity
- Type-C one-cable solution (display + touch + power)
- Multiple ports: HDMI, USB, LAN, Type-C

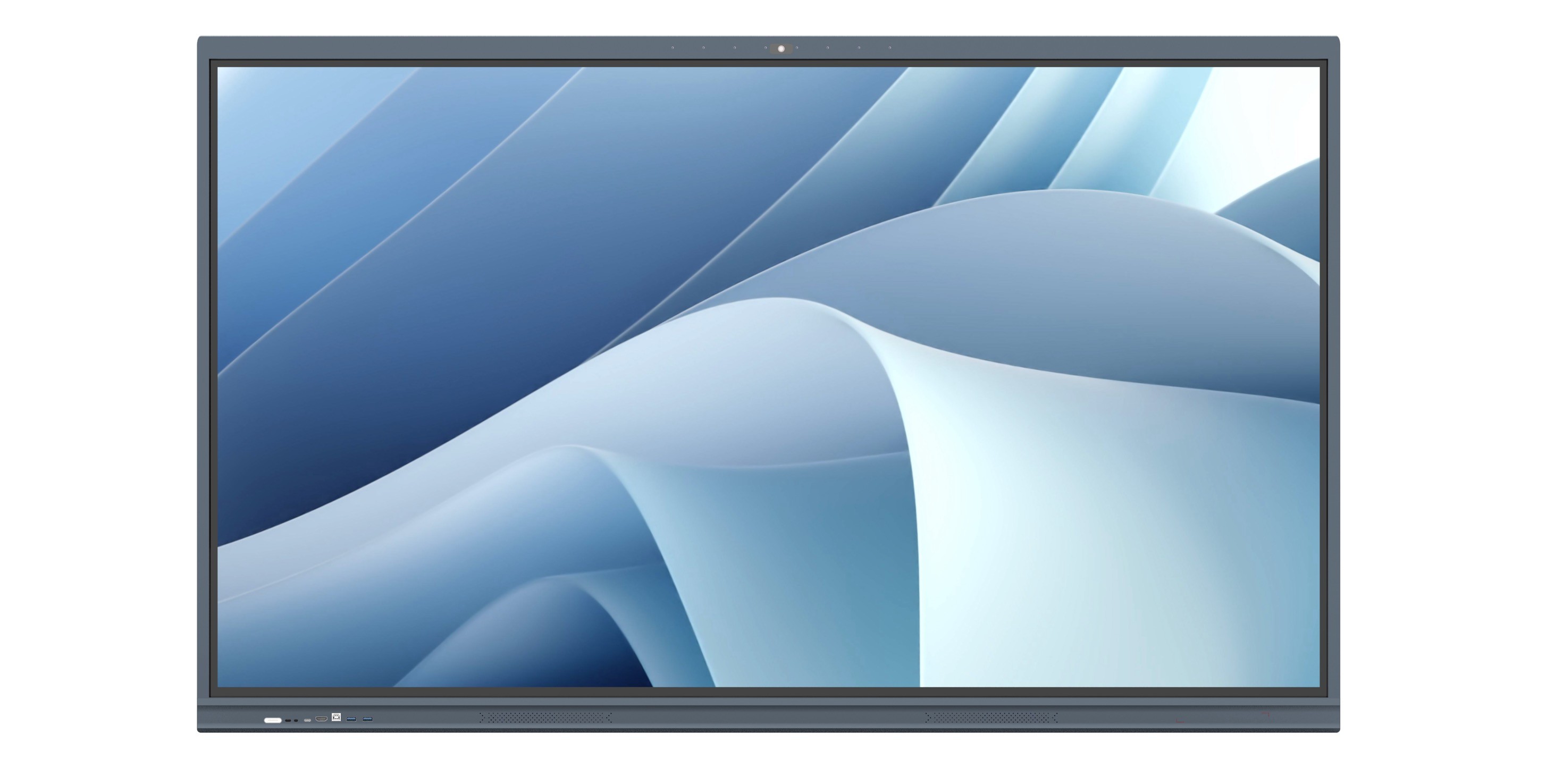

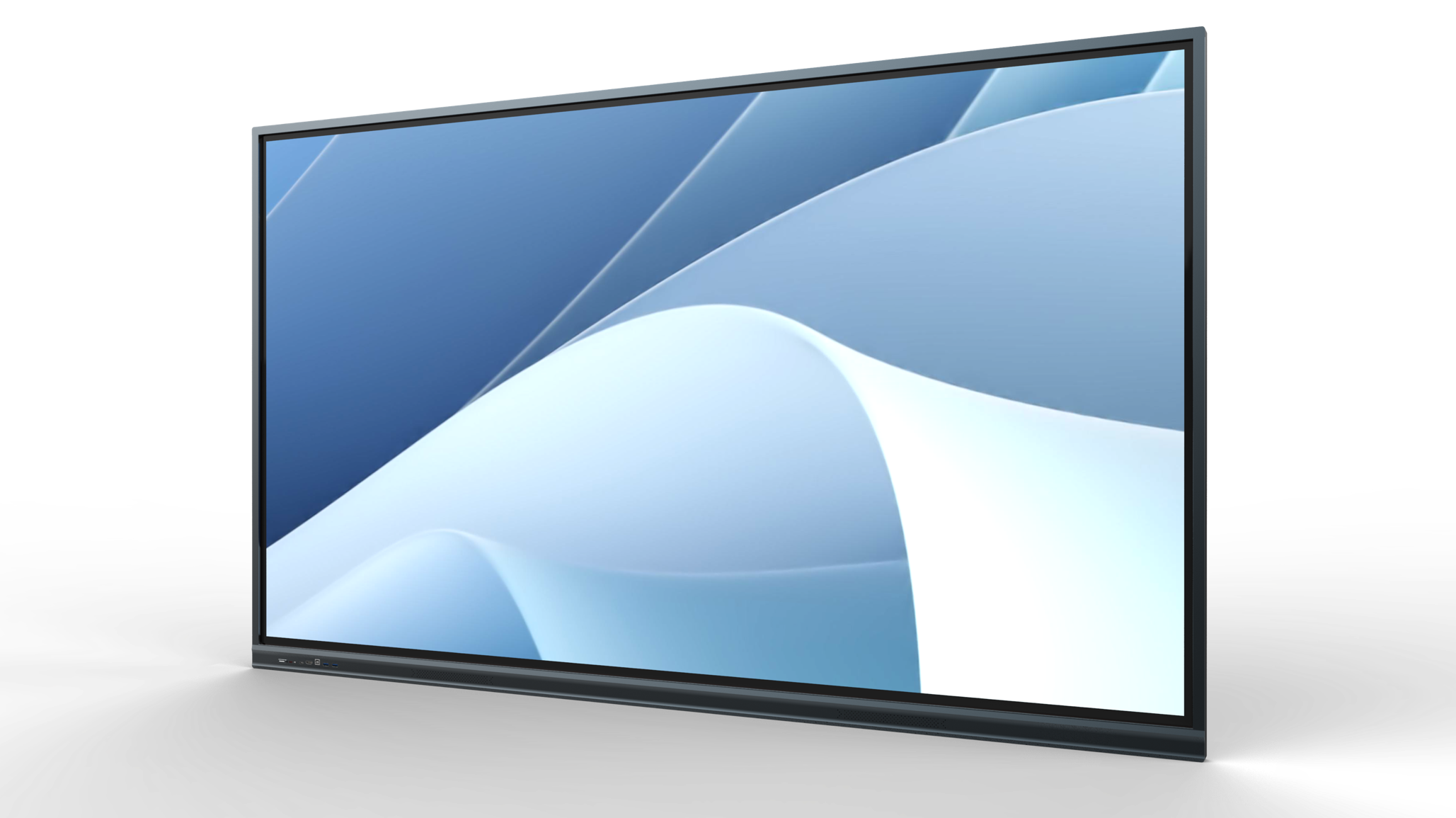

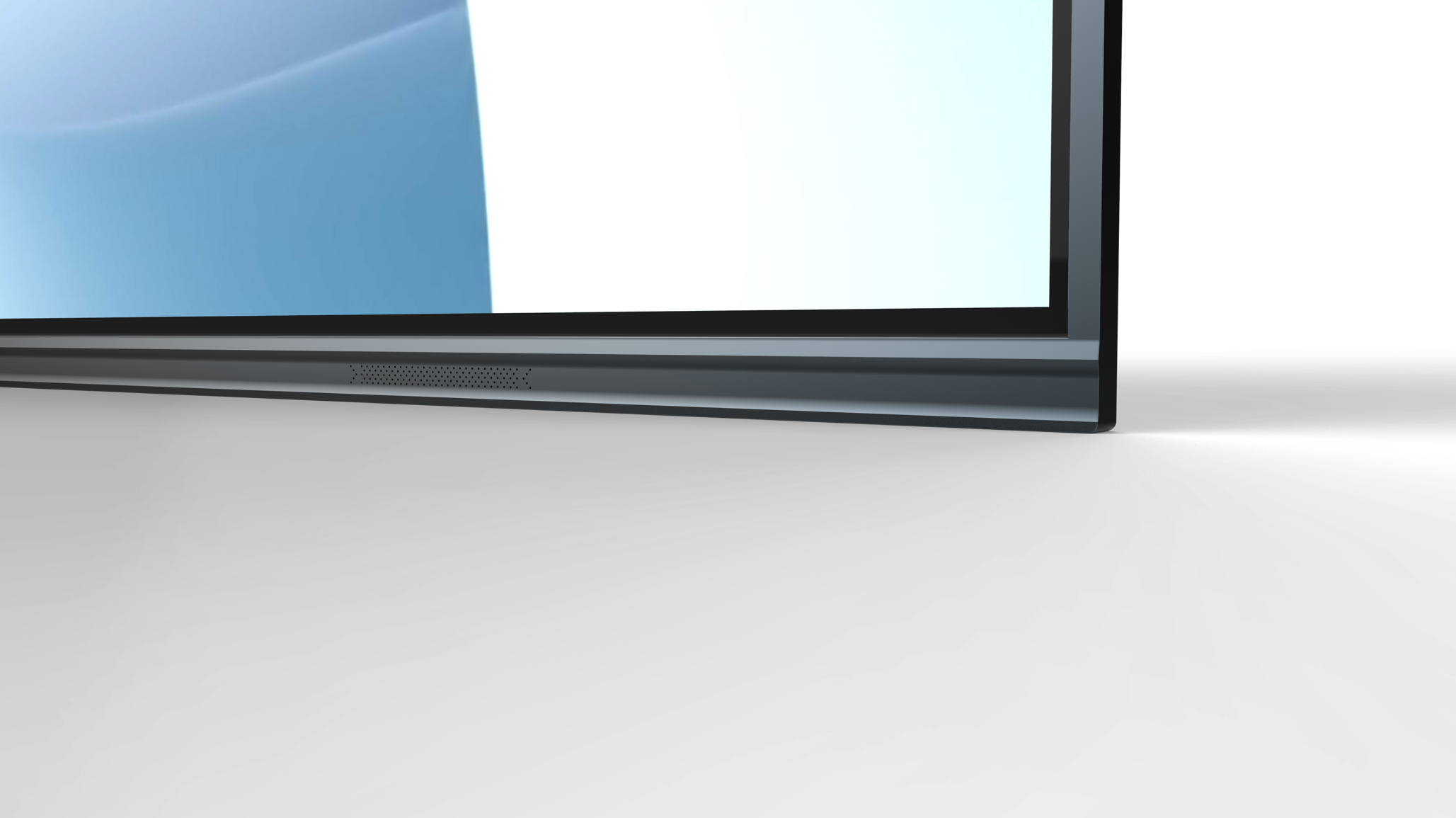

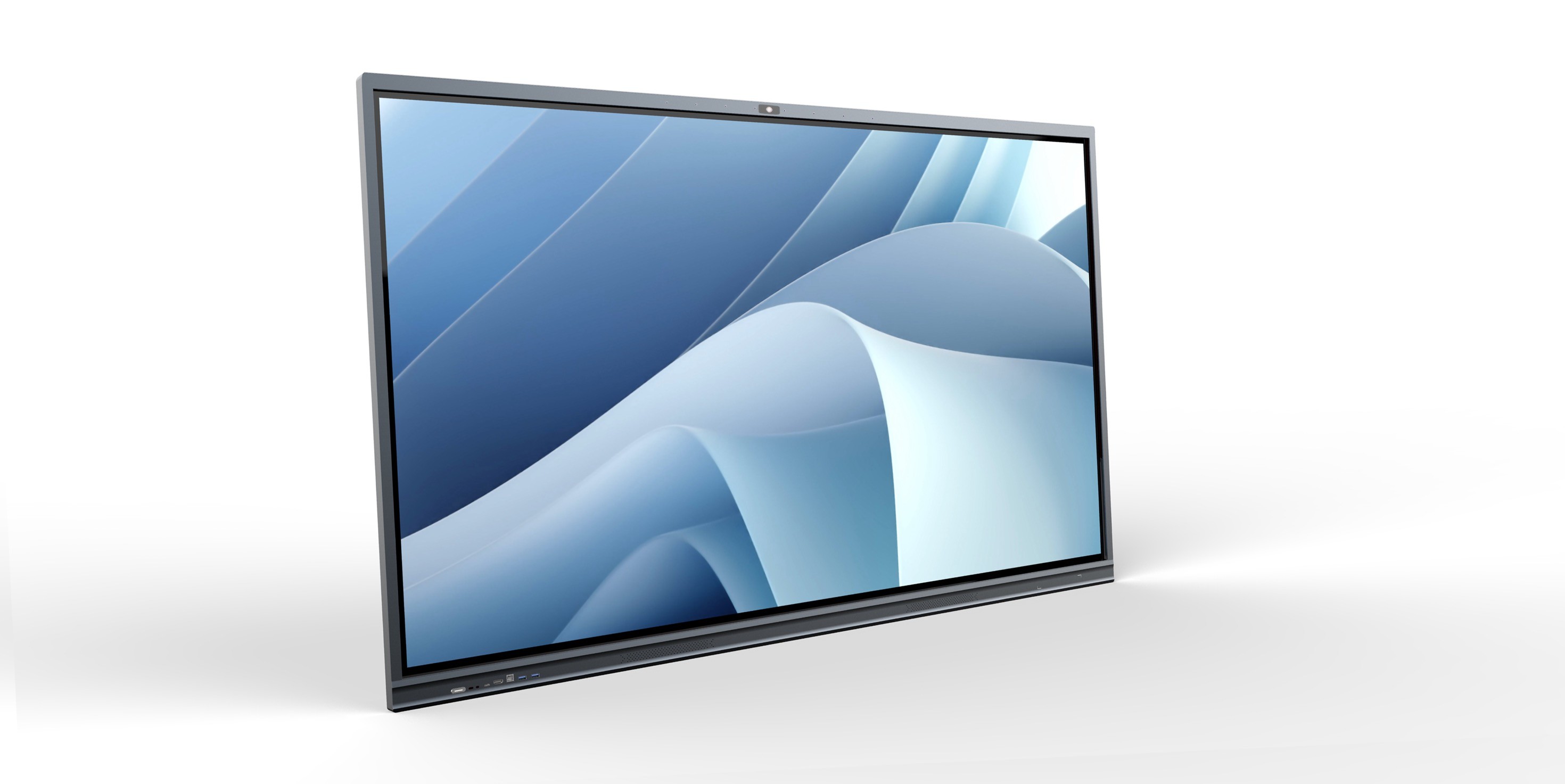

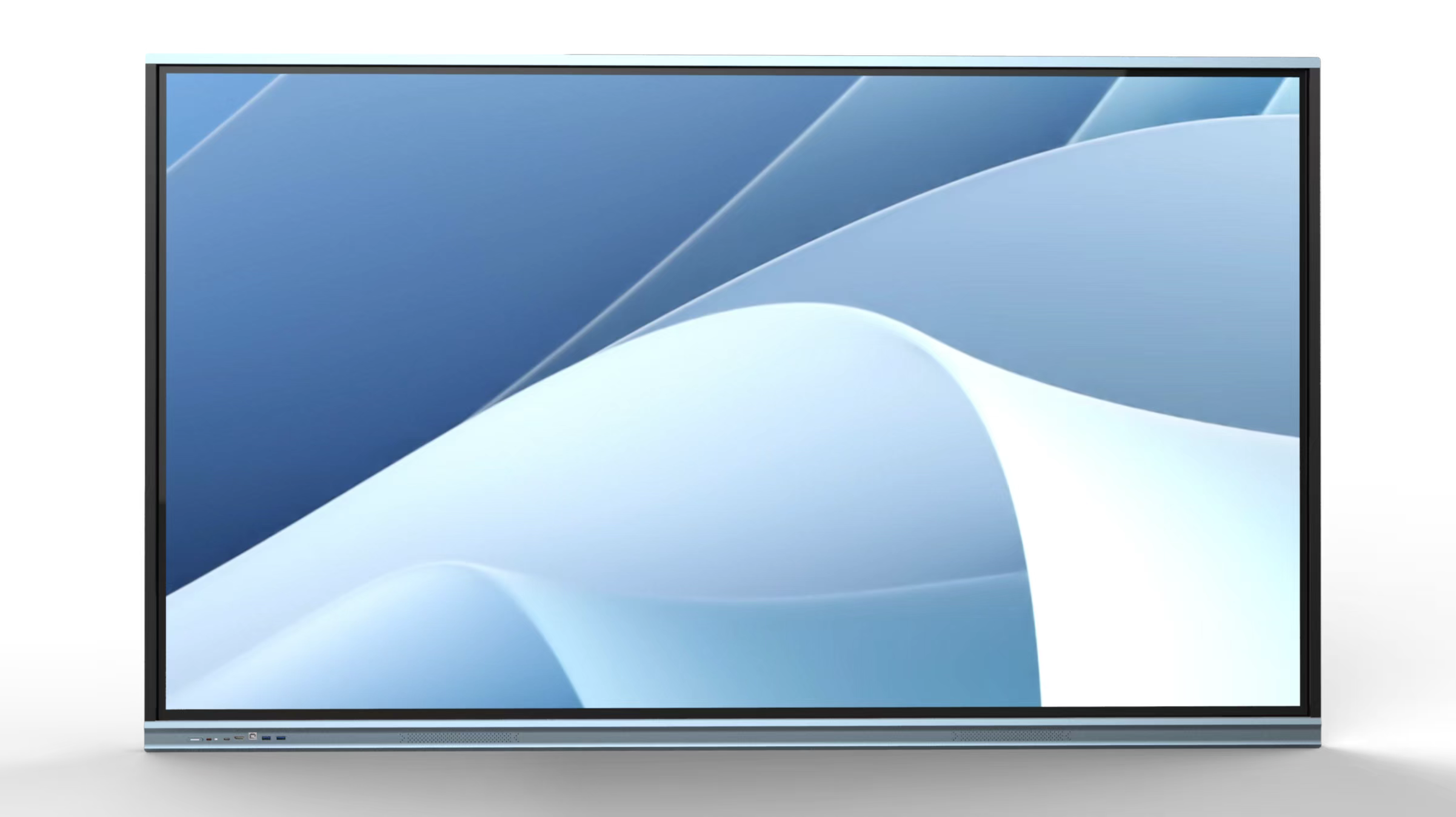

Slim frame design with metal structure
Zero bonding technology
3mm anti-glare tempered glass at Mohs 7H, light resistant for excellent clarity
Support ambient light sensor
4K UHD display, support full channel 4K UI display
Technical Specifications
Android System | ||||
Mainboard | T982 | |||
CPU | Ouad-core A55 | |||
GPU | Mali-G52 | |||
RAM | 4G | |||
ROM | 32G | |||
Android Version | Android 11.0 | |||
Touch | ||||
Touch Technology | Infrared Technology | |||
Input Methods | passive infrared pen | |||
Touch Precision | ±2mm | |||
Touch Points | 20 points touch | |||
Minimum Object Size | 3mm | |||
Writing Height | ≤3mm | |||
Touch Resolution | 32768(W)×32768(D) | |||
Response Time | ≤10ms | |||
Front facing keys&buttons | 8 front buttons | |||
Supported Compatibility | Windows10/Windows8/Windows7/WindowsXP/Android/Linux/Mac OS X/Chrome | |||
I/O Port | ||||
HDMI IN | *3 (front*1) | |||
USB 2.0 | *2 (front*1) | |||
USB 3.0 | *2 (front*1) | |||
USB Type-C | *1 (front) | |||
TOUCH 2.0 | *2 (front*1) | |||
VGA IN | *1 (optional) | |||
AUDIO IN | *1 (optional) | |||
SPDIF OUT | *1 | |||
Earphone OUT | *1 | |||
RS232 | *1 | |||
RJ45 IN | *1 | |||
AV OUT | *1 | |||
AV IN | *1 | |||
YPbPR IN | *1 (optional) | |||
Power | ||||
Input Voltage | 180-240V～50/60Hz | |||
Power Consumption | 65” : 170W | |||
75” : 280W | ||||
86” : 330W | ||||
Standby Power Consumption | 65” : ≤0.5W | |||
75” : ≤0.5W | ||||
86” : ≤0.5W | ||||
Speaker | ||||
Channel | 2 | |||
Speaker Power | 2 x10W | |||
Wifi Module | ||||
Wireless Module | 2.4G | |||
OPS Module | ||||
OPS Model | I3/I5/I7 | |||
OPS Input Voltage | 19V DC | |||
Rated Output Current | 5.0A | |||
Peak Output Current | *6.0A | |||
Rated Power | 95W | |||
Support Interface | Conform to Intel® OPS-C JAE 80-pin connector | |||
OPS Dimension | L196*W180*H33~42mm (Recommended Height: 33mm) | |||
OPS Image Resolution | Support 3840*2160p@30Hz for output | |||
Environment | ||||
Working Temperature | 0℃~40℃ | |||
Working Humidity | 10%~90%RH | |||
Storage Temperature | -20℃~60℃ | |||
Storage Humidity | 10%~90%RH | |||
Display | ||||
Model | TS65LR-L6H | TS75LR-L6H | TS85LR-L6H | TS86LR-L6H |
Panel Type | IPS | |||
Backlight Type | DLED | |||
Display Area (mm) | 1430(H)×805(V) | 1649(H)×927(V) | 1872(H)×1053(V) | 1849(H)×1066(V) |
Resolution | 3840(H)×2160(V) | |||
Brightness (Typ.) | 350cd/㎡ | |||
Contrast Ratio (Typ.) | 1200:01:00 | |||
Viewing Angle | H/V: 178/178° | |||
Aspect Ratio | 16:09 | |||
Response Time | 8ms | |||
Refresh Rate | 60Hz | |||
Saturation (x% NTSC) | 72% | |||
Display Color | 1.07B (10bit) | |||
Screen Lifespan | ≥30000hrs | |||
Structure (Unit: mm) | ||||
Screen Size | 65 inch | 75 inch | 85 inch | 86 inch |
Overall Size | L1483×W89.1×H891 | L1705×W89.3×H1016 | L1952×W89.3×H1154 | L1952×W89.3×H1154 |
Packing Size | L1630×W210×H1050 | L1840×W225×H1170 | L2090×W225×H1295 | L2090×W225×H1295 |
N.W. (KG) | 34.4 | 47.7 | 59.8 | 60.2 |
G.W. (KG) | 44.2 | 60.5 | 77.5 | 77.9 |
Thickness (include panel and wall mount bracket) | 120mm | |||
VESA Mount Size (L*W) | 500×400 | 600×400 | 800×400 | 800×400 |
Wall Mount Bracket Screw | M8×25mm | |||
Accessories | ||||
Power Cable | *1 | |||
Touch Pen | *1 | |||
Wall Mount Bracket | *1 | |||
User Manual | *1 | |||
