Apollo AIP-IN-display L Interactive Flat Panel
Key Features
- 4K Ultra HD display (3840×2160) with 400 nits brightness
- Strong image quality with 5000:1 contrast & 178° viewing angle
- Smooth IR touch with 20-point multi-touch (optional 40-point)
- Fast touch response (≤5ms) for writing & presentations
- Durable 4mm anti-glare tempered glass
- Built-in dual speakers (2×10W)
- Android system (Android 6.0) for basic smart use
- Quad-core Cortex-A53 processor with expandable storage (up to 128GB)
- Multiple connectivity: HDMI, USB, LAN, VGA, AV, RS232
- OPS slot support (Intel i3/i5/i7 – Windows ready)
- Long lifespan (50,000+ hours)
- Stable for long usage (up to 18 hrs/day)

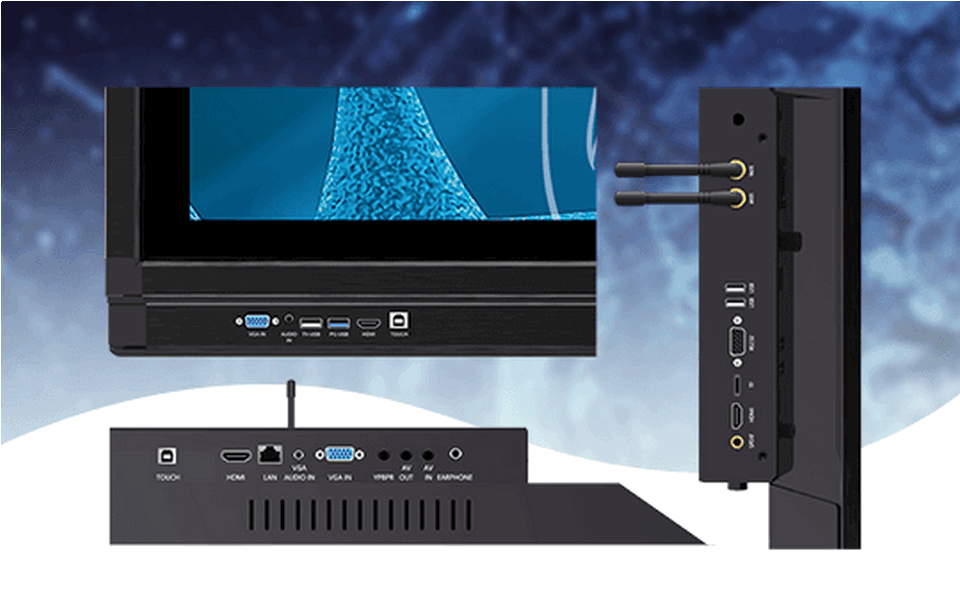

Rich plug-n-play interfaces
Rich plug-n-play interfaces for fast presentation.
Android 8.0
Switch with a tap between Android OS and Windows 10 OS seamlessly.
Screen mirroring and sharing
4 devices can be showed on panel simultaneously. Just bring your own devices (BYOD).
Technical Specifications
Product Main Parameter | |||
Model | AP65LD | AP75LD | AP86LD |
Backlight | LED | ||
Active Screen Size | 65” | 75” | 86” |
Display Ratio | 16：9 | ||
Resolution | 4k 3840(H)*2160(V) | ||
Colors | 8 bit / 1.08 billion colors | ||
Brightness | 400cd/m2 | ||
Contrast | 5000:1 | 5000：1 | 5000：1 |
Response Time | 6ms | ||
Viewing Angle | 178 degrees | ||
Life Time | 50000Hrs≥ | ||
Speaker | 10W*2 | ||
OPS Slot | Yes | ||
Power Consumption | Maximum<220W, Eco<100W, Standby Mode<0.5W | Maximum<250W, Eco<125W, Standby Mode<0.5W | Maximum<350W, Eco<225W, Standby Mode<0.5W |
Power Voltage | AC 100-240V, 50/60Hz 15W*2 | ||
Working Temperature/Humidity | 0~40℃ / 20%~80% | ||
Max. Continue Working Time | 18 hours*7 days | ||
Android System | |||
System Configuration | ARM Cortex A53 1.5 HZ,Quad-Core，2GB DDR3，8GB (SD Card Support 128G )，Android 6.0 | ||
Interface Inputs/Outputs | Front Interface:PC-USB*1,Media-usb*1,touch usb*1,HDMI IN*1,VGA IN*1,AUDIO IN*1,BUTTONS*8 | ||
Touch Screen Parameter | |||
Glass Surface | 4 mm tempered glass (Anti-glare/option) | ||
Technology | IR | ||
HID Support | Yes | ||
Touch Supported | IR 20 points touch, optional support for 40 touch recognition (additional parts required) | ||
Writing Tools | finger or any opaque object | ||
Positioning Accuracy | ≥3 mm | ||
Response Time | ≤ 5ms | ||
Connection Interface | USB | ||
Detachable IR Frame | Yes | ||
Software | Yes | ||
Touch Life Expectancy | ≥60,000,000 times | ||
OPS (optional) | |||
Chipset | Intel H110 Express | ||
CPU | i3 Intel Skylake | i5 Intel Skylake | i7 Intel Skylake |
Storage | 4G DDR4 RAM / SSD128G/256G | ||
Graphics | Intel IntelHD | Intel IntelHD | NIVIDA GT 1030 2G (i7) |
Interface | USB2.0*4, USB3.0*2, RJ45*1, HDMI*1, DP OUT*1, LINE OUT*1, MIC IN*1, WIFI, COM (option) | ||
OS | Windows 10 | ||
Packing Details | |||
Accessories | Pen*1,Wifi Antanna*3,Remote controller*1, Power cable 1.5*1, User manual*1, Wall bracket*1,Pressure pen*1(optional),wireless presentation system*1(optional) | ||
Packing Dimension (mm) | 1640*215*1055 | 1860*220*1185 | 2110*240*1315 |
Net Weight (kg±4) | 46.4Kg±1Kg | 60Kg±1Kg | 79Kg±1Kg |
Gross Weight (kg±4) | 58.3Kg±1Kg | 76Kg±1Kg | 95Kg±1Kg |
Product Dimension(mm) | 1515.4*935.5*102.6 | 1736.8*1060*107.5 | 1990.2*1202.7*114.3 |
