Apollo AIP-DUAL OPS EDLA Interactive Flat Panel

AIP-DUAL OPS EDLA Copied!

Key Features

  • 4K Ultra HD display (65”–98”) with wide 178° viewing angle
  • 40-point infrared multi-touch with smooth writing experience
  • Anti-glare 4mm glass with high durability (60M+ touches)
  • Mediatek-based system with stable Android performance
  • Built-in dual 15W speakers for clear audio output
  • Multiple ports: HDMI, USB 3.0/2.0, Type-C, RS232
  • Smart control buttons (voice, menu, system switch, touch lock)
  • Long lifespan (30,000 hours) with low standby power usage
Contact Us To Purchase


l Easy use front buttons to quick access any OS


l Both OPS can be updated in future as you want


l High precision infrared touch frame, touch accuracy up to ±1mm, touch height 3mm, support 40 point touch control, high sensitivity;


l Front multi-key function (on/off, menu, backlight +/-, sound +/-, touch lock)


l Anti-reflective 4K Screen

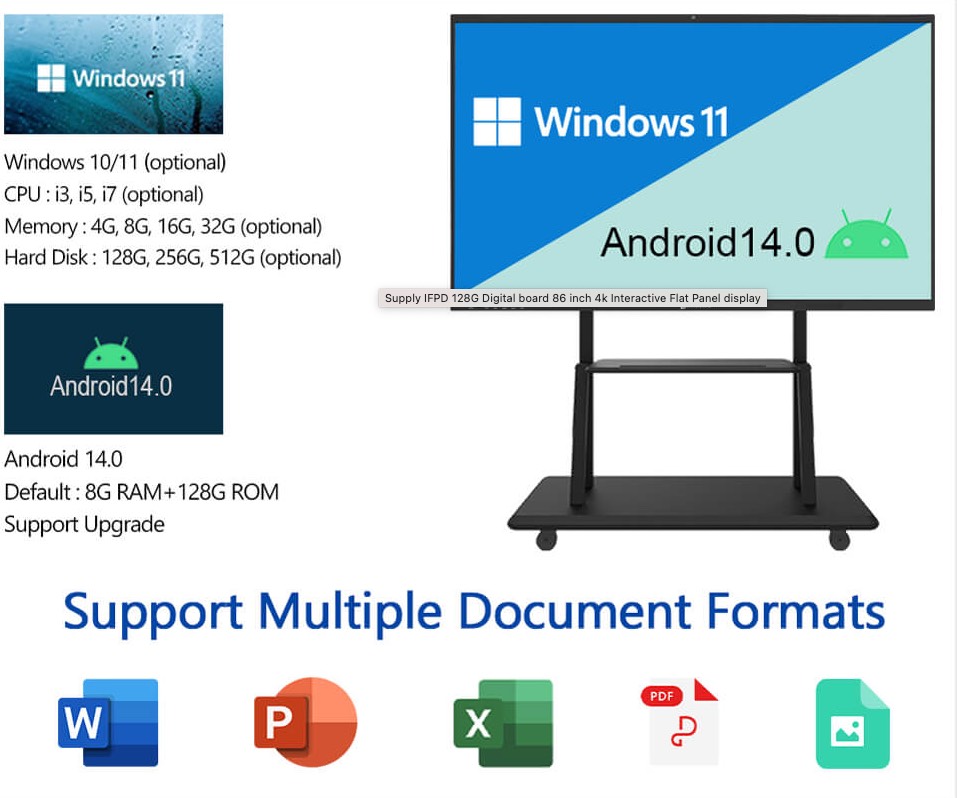

Apollo AIP-DUAL OPS EDLA Interactive Flat Panel feature

Technical Specifications

ModelAP65HTAP75HTAP85HTAP86HTAP98HT
Display ParameterDiagonal Size65inch75inch85inch86inch98inch
Display Area1428.48(H)*803.52(V)1650.24(H)×928.26(V)1872(H)×1053(V)1895(H)×1066(V)2158.85(H)*1214.35(V)
Display Ratio16:916:916:916:916:9
Brightness320cd/㎡350cd/㎡350cd/㎡350cd/㎡350cd/㎡
Contrast Ratio4000:14000:14000:14000:11200:1
Backlight TypeDLEDDLEDDLEDDLEDDLED
Viewing Angle178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H)
Resolution3840（H) X 2160(V)3840（H) X 2160(V)3840（H) X 2160(V)3840(H) X 2160(V)3840（H) X 2160(V)
Audio Output8Ω/15W*28Ω/15W*28Ω/15W*28Ω/15W*28Ω/15W*2
Touch screenTouch Multiple Infrared scanning technology
Touch type40 point touch
Drive ModeHID Free drive
Surface4mm  Ag anti glare glass
Touch Sensor Finger, writing pen, hand with gloves or other non transparent touch sensitive medium
Resolution 32768X32768
Communication PortUSB 2.0
RecognitionSize2mm
ResponseTime ≤5ms
Touch Accuracy±1mm
AntiInterferenceIncandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 80000Lux
CalibrationCalibration free
Touch TimeMore than 60 million times in the same position
Touch Power USB 5.0V power supply
Android Chip SolutionMediatek
Back InputUSB 3.04
HDMI IN2
Type-C1
RS-2321
USB 2.01
MICRO USB1
Back OUTUSB TOUCH1
Front buttonPower Button 1
Rest screen1
Voice+1
Voice-1
Menu1
System switching1
Touch Lock1
ModuleLight sensor1
AccessoryMagnetic whiteboard Pen X1pc, Wall-Mount Bracket X1set, Power Cord X1pc, Remote Control X1pc
OthersPower ≤210W≤325W≤420W≤420W≤500W
Standby≤0.5W≤0.5W≤0.5W≤0.5W≤0.5W
Lifetime30000 hours30000 hours30000 hours30000 hours30000 hours
power supply100-240V, 50/60Hz100-240V, 50/60Hz100-240V, 50/60Hz100-240V, 50/60Hz100-240V, 50/60Hz
Demission （mm）1485.2*905.7*88.31707.6*1030.9*88.31953.56*1177.9*88.31953.56*1177.9*88.32217.4*1324.18*108.3
VESA  hole site4-M8  hole site 500mm*400mm4-M8  hole site 600mm*400mm4-M8  hole site 800mm*400mm4-M8  hole site 800mm*400mm4-M8  hole site 900mm*600mm
Net Weight37KG50.6KG66KG66KG87.1kg
Gross Weight45.75KG62KG82KG82KG111kg
package size1600*1030*200mm1855*1170*200mm2095*1320*220mm2095*1320*220mm2358*1485*280mm
 PC（Optional）PC OptionH81/H110/H310 MainboardH81/H110/H310 MainboardH81/H110/H310 MainboardH81/H110/H310 MainboardH81/H110/H310 Mainboard
Input Voluge18V DC18V DC18V DC18V DC18V DC
Rated Output 5A6A6A6A6A
Peak Output 6A8A8A8A8A
Rated Load90W108W108W108W108W
lnterfaceCanform to Intel®  OPS-C JAE 80-pin connector
Standard OPS L194.6*W179.8*H42mm（42mm or 30mm）
European OPSL180*W119*H30mm
