Apollo Floor Standing Capactive Digital Kiosk
Key Features
- Full HD resolution (1920 × 1080) across all models
- Commercial-grade LED panels (E-LED / D-LED backlight)
- ≥350 cd/m² brightness for strong indoor visibility
- Ultra-wide 178° viewing angle (89/89/89/89)
- 16.7M colors (8-bit) for natural image quality
- 60Hz refresh rate with RGB vertical stripe panel structure
Android and All in one pc are supported
Plug and Play
Intelligent Split Screen
Customized function as requested
Technical Specifications
Panel Size | 32 inch | 43 inch | 49 inch | 55 inch |
Panel | commercial LED panel | commercial LED panel | commercial LED panel | commercial LED panel |
Resolutions | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Active Area | 698.4*392.8mm | 940.5*530.8mm | 1074.7*605mm | 682.4*1210.8mm |
Viewing Angle | 89/89/89/89 (left/right/up/down) | 89/89/89/89 (left/right/up/down) | 89/89/89/89 (left/right/up/down) | 89/89/89/89 (left/right/up/down) |
Brightness | ≥350cd/m2 | ≥350cd/m2 | ≥350cd/m2 | ≥350cd/m2 |
Backlight Type | E-LED | E-LED | D-LED | E-LED |
Response Time | 16.7M (8-bit) | 16.7M (8-bit) | 16.7M (8-bit) | 16.7M (8-bit) |
Frequency | 60HZ | 60HZ | 60HZ | 60HZ |
Pixel Structure | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe |
Touch Solution | Capacitive G+G | Capacitive G+FF | Capacitive G+G | Capacitive G+G |
Driver | HID free driver | HID free driver | HID free driver | HID free driver |
Touch Point | 10 touch points | 10 touch points | 10 touch points | 10 touch points |
Touch Method | finger or capacitive touch pen | finger or capacitive touch pen | finger or capacitive touch pen | finger or capacitive touch pen |
Touch Precision | ≤2mm | ≤2mm | ≤2mm | ≤2mm |
Touch Times | unlimited | unlimited | unlimited | unlimited |
Response Time | ＜8ms | ＜8ms | ＜8ms | ＜8ms |
Calibration | software | software | software | software |
Surface | tempered glass | tempered glass | tempered glass | tempered glass |
OS | Android 8.1 | Android 8.1 | Android 8.1 | Android 8.1 |
CPU | RK3288 Quad-core Cortex-A17 1.8GHz | RK3288 Quad-core Cortex-A17 1.8GHz | RK3288 Quad-core Cortex-A17 1.8GHz | RK3288 Quad-core Cortex-A17 1.8GHz |
RAM | 2GB | 2GB | 2GB | 2GB |
ROM | 8GB | 8GB | 8GB | 8GB |
Pre-installed Software | Information releasing system, and support the third party application | Information releasing system, and support the third party application | Information releasing system, and support the third party application | Information releasing system, and support the third party application |
Interface | DC-IN*1, RJ45*1, USB*2, SD card*1, HDMI-OUT*1 | DC-IN*1, RJ45*1, USB*2, SD card*1, HDMI-OUT*1 | DC-IN*1, RJ45*1, USB*2, SD card*1, HDMI-OUT*1 | DC-IN*1, RJ45*1, USB*2, SD card*1, HDMI-OUT*1 |
Network | support Ethernet, WIFI (3G/4G for optional) | support Ethernet, WIFI (3G/4G for optional) | support Ethernet, WIFI (3G/4G for optional) | support Ethernet, WIFI (3G/4G for optional) |
Timing Power on/off | customise power-on/off supported | customise power-on/off supported | customise power-on/off supported | customise power-on/off supported |
Mouse/Keyboard | support wired/wireless mouse and keyboard | support wired/wireless mouse and keyboard | support wired/wireless mouse and keyboard | support wired/wireless mouse and keyboard |
The operating system configurations mentioned above can be upgraded with higher version, or changed to Window OS. | ||||
Frame Materials | aluminium profile, cold-roll steel sheet | aluminium profile, cold-roll steel sheet | aluminium profile, cold-roll steel sheet | aluminium profile, cold-roll steel sheet |
Frame Color | black/silver | black/silver | black/silver | black/silver |
Body Color | black | black | black | black |
Surface | 3.5mm tempered glass | 3.5mm tempered glass | 3.5mm tempered glass | 3.5mm tempered glass |
Product Dimension | 1700*441*62.3mm | 1800*580.8*75.9mm | 1850*665.4*75.9mm | 1900*731.8*75.3mm |
Pedestal Dimension | 450*441mm | 559.6*500.5*28.9mm | 634.5*500.4*28.7mm | 710.4*500.2*28.7mm |
Packing Dimension | 1740*139*532.2mm | 1950*175*780mm | 1950*780*175mm | 2000*850*175mm |
Packing Material | double wall corrugated boxes | double wall corrugated boxes | double wall corrugated boxes | double wall corrugated boxes |
N/W | 33KG | 50KG | 55KG | 60KG |
G/W | 40KG | 52.6KG | 57.6KG | 62.6KG |

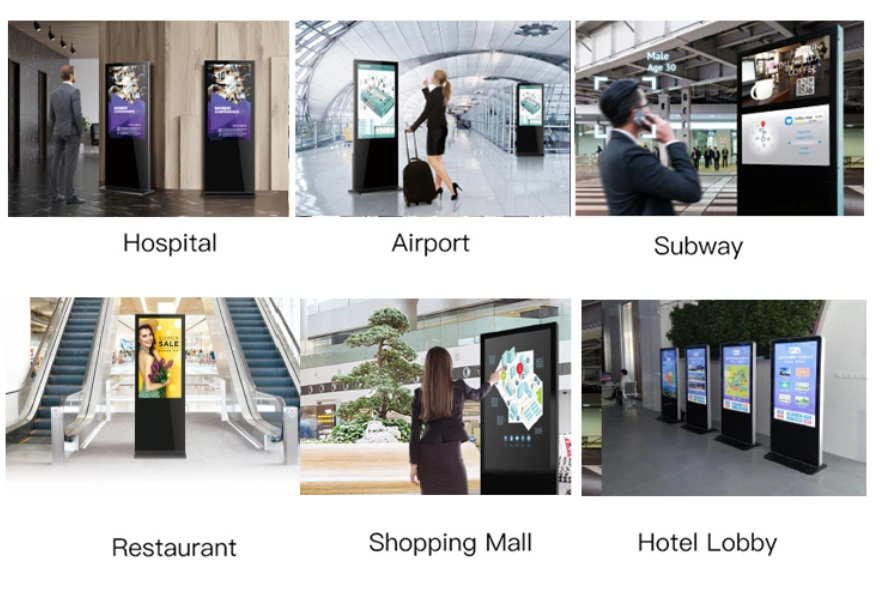

Applications | indoors | indoors | indoors | indoors |
Input Voltage | AC110-220V | AC110-220V | AC110-220V | AC110-220V |
Standby Power | ≤1W | ≤1W | ≤1W | ≤1W |
Working Power | ≤56W | ≤56W | ≤64W | ≤90W |
Working Environment | TEMP: ‐20℃~60℃ / Humidity: 10%RH~90%RH | TEMP: ‐20℃~60℃ / Humidity: 10%RH~90%RH | TEMP: ‐20℃~60℃ / Humidity: 10%RH~90%RH | TEMP: ‐20℃~60℃ / Humidity: 10%RH~90%RH |
Storage Environment | TEMP: ‐10℃~55℃ / Humidity: 10%RH~90%RH | TEMP: ‐10℃~55℃ / Humidity: 10%RH~90%RH | TEMP: ‐10℃~55℃ / Humidity: 10%RH~90%RH | TEMP: ‐10℃~55℃ / Humidity: 10%RH~90%RH |
Accessories | digital signage*1, pedestal*1, wrench*1, power cable*1, key*1, remote control*1, WiFi antenna*1 | digital signage*1, bracket*1, power cable*1, WiFi antenna*1, key*1 | digital signage*1, bracket*1, power cable*1, WiFi antenna*1, key*1 | digital signage*1, bracket*1, power cable*1, WiFi antenna*1, key*1 |
