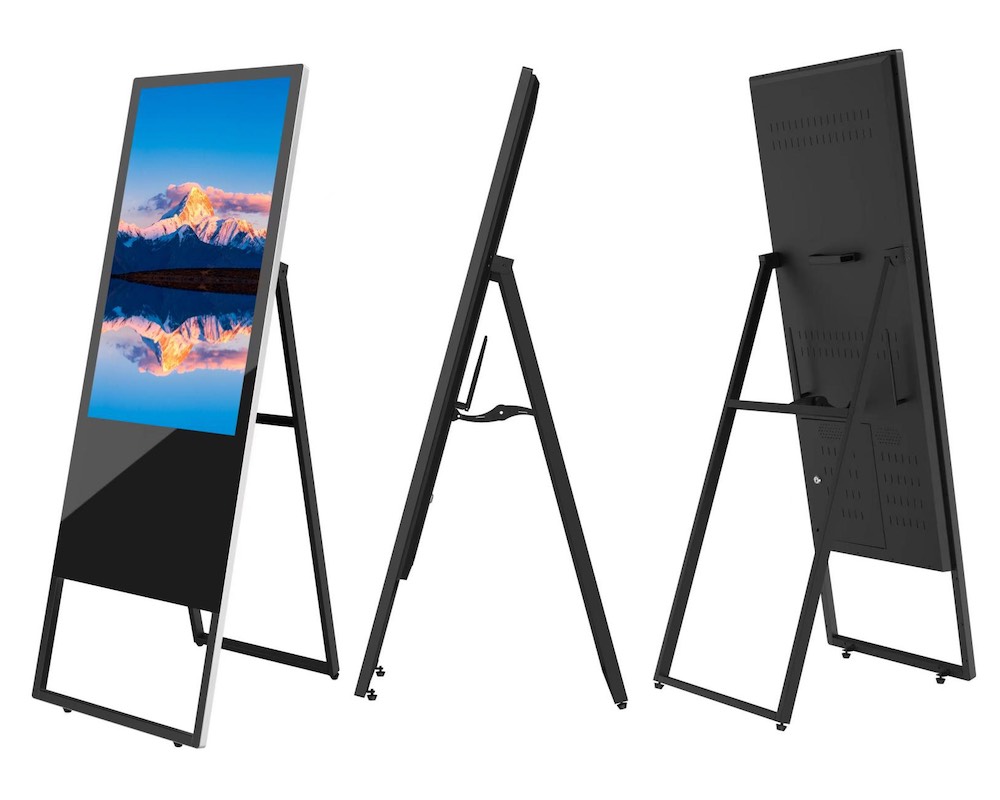

Apollo AIP-43FDK Floor Stand Digital Kiosk & Portable Digital Signage Display
AIP-43FDK
Copied!
Key Features
- 43-inch Full HD vertical display (1080 × 1920, 9:16 portrait mode)
- Commercial-grade E-LED panel for stable performance
- ≥300 cd/m² brightness for clear indoor visibility
- Wide 178° viewing angle for audience visibility
- 16.7M colors (8-bit) for natural image output
- Android 9.0 built-in smart operating system
- Quad-core Cortex-A53 processor (1GHz)
- 1GB RAM + 8GB internal storage
- Supports Ethernet & WiFi connectivity
- Multiple media formats supported (video, image, audio)
- Auto power ON/OFF scheduling function
- Dual 5W built-in speakers for audio output
- Strong 3mm+ explosion-proof tempered glass protection
- Durable cold-rolled steel + aluminum frame design
Plug and Play with Centralized Management
Easily foldable and portable
24/7 Commercial Grade
Toughened Safety Glass
Technical Specifications
| LCD size | 43 inches |
| resolution ratio | 1080*1920 |
| Display area | 529.4*941.2mm（H×V） |
| Aspe ratio | 16:09 |
| View Angle | 89/89/89/89 (left/right/up/down) |
| luminance | ≥300cd/m2 |
| Backlight type | E-LED |
| Coloration | 16.7M（8-bit） |
| service frequency | 60HZ |
| Pixel arrangement | RGB vertical bar installation |
| operating system | android |
| System version | Android 9.0 |
| CPU | The four-core Cortex-A53 has a main frequency of 1GHz |
| internal storage | 1GB |
| memory | 8GB |
| system interface | USB port *2, RJ45 port *1, HDMI-IN port *1 |
| Video playback | Supports wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and other formats |
| Image credit | Supports BMP, JPEG, PNG, GIF and other formats |
| internetwork communication | Support Ethernet and WIFI |
| Turn on and off at regular intervals | Supports custom setting of on/off time |
| Mouse and keyboard | Support hot plug-in |
| Background sound power | 8Ω5W*2 |
| Third-party applications | Support third-party applications |
| Border material | alufer |
| Body material | Cold rolled steel plate for hardware |
| armoured glass | High strength explosion-proof tempered glass with thickness of more than 3mm |
| Body size | 603.4*1700*83mm |
| packing measurement | 730mm*1800mm*180mm |
| Packaging material | Gravity cartons |
| Weight of the fuselage | 25kg |
| Including packaging weight | 29kg |
| way to install | Laid flat |
| usage scenario | indoor |
| input voltage | AC100-240V |
| Standby power | ≤1W |
| power rating | ≤62W |
| service environment | Temperature-10℃~50℃/humidity 10%RH~90%RH |
| Storage environment | Temperature-15℃~65℃/humidity 10%RH~95%RH |
| Accessories | One power cable, one WiFi antenna, one remote control and one certificate of conformity and warranty card |
