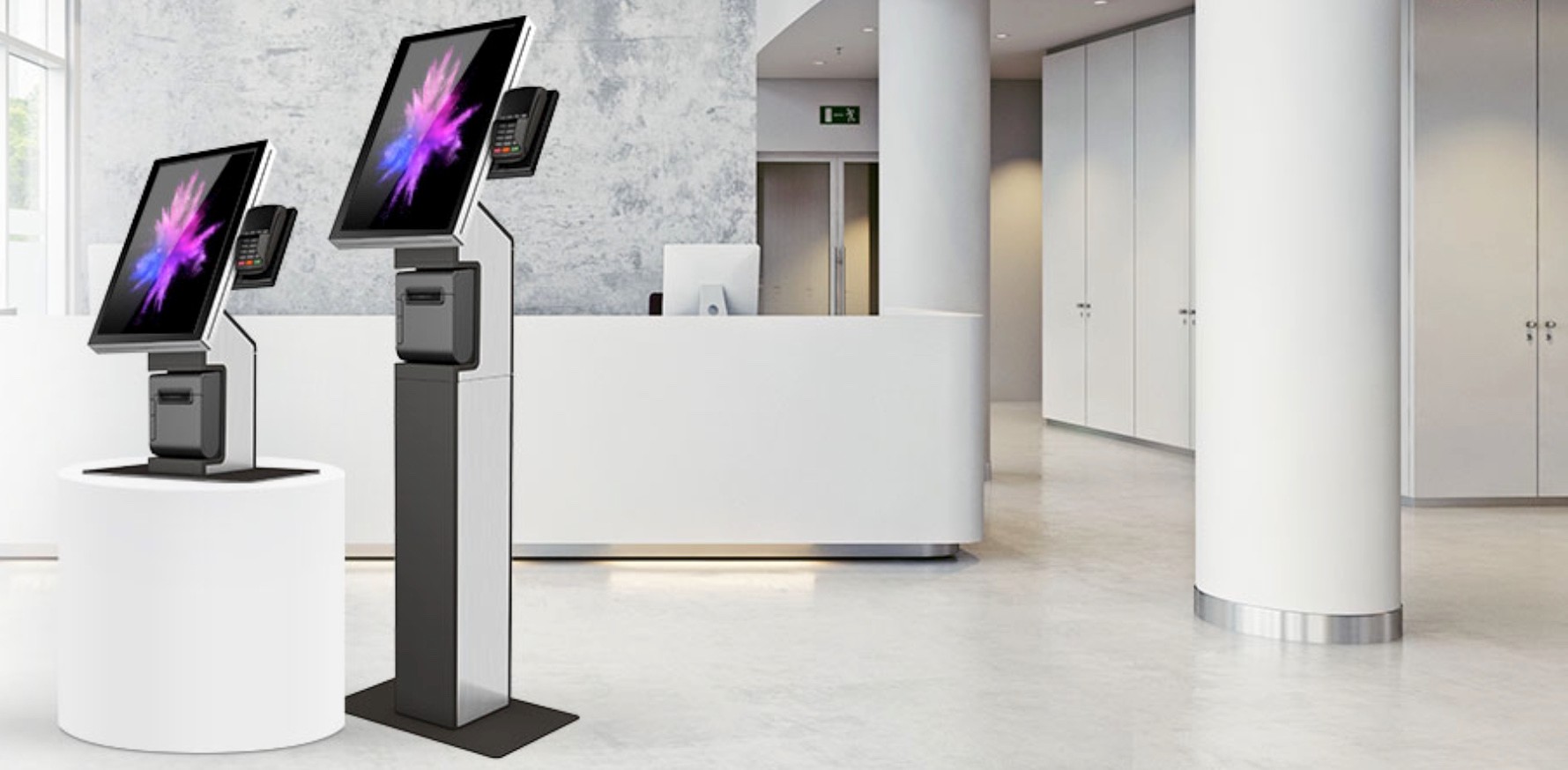

Apollo AIP-21.5DSK Touch Enrollment Kiosk
AIP-21.5DSK
Copied!
Key Features
- 21.5-inch Full HD portrait display (1080 × 1920 resolution)
- ≥300 cd/m² brightness for clear visibility
- Ultra-wide 178° viewing angle (89/89/89/89)
- E-LED backlight for stable and efficient performance
- 16.7M color depth (8-bit) for natural visuals
- 60Hz refresh rate with RGB vertical stripe structure
Ultra wide angle,contrast,brightness and resolution;
Smart touch screen provides user-friendly registration experience
FBI-certified fingerprint scanner captures up to 10 fingers
Space-saving design enables versatile set-up options
Technical Specifications
| 21.5" Kiosk Enrollment System Specifications | |
|---|---|
| LCD Specification | New original factory original package LCD commercial liquid crystal panel |
| Display Size | 21.5 inches |
| Display Area | 268 * 476.5mm |
| Resolution Ratio | 1080 * 1920 |
| View Angle | 89 / 89 / 89 / 89 (Left/Right/Top/Down) |
| Luminance | ≥300cd/m2 |
| Backlight Type | E-LED |
| Color Saturation | 16.7M (8-bit) |
| Service Frequency | 60HZ |
| Pixel Arrangement | RGB vertical strip packaging |
| Touch Control Scheme | G+G electric capacity |
| Drive Mode | HID is driver-free |
| Touch Point Count | Touch at 10 o'clock |
| Touch Medium | Finger or capacitive stylus |
| Touch Accuracy | ≦2mm |
| Number of Touches | Theoretically unlimited touches |
| Response Time | <8ms |
| Touch Calibration | Software |
| Touch Interface | Armoured glass |
| Small Ticket Barcode Printer | Thermal printing, 3-inch self-service terminal device; Built-in cutter, embedded panel; Supports 80mm outer diameter paper roll; 203dpi resolution; Max speed 150mm/s; Photoelectric paper shortage/block detection. |
| CPU | Intel® Core™ i5-10400 processor |
| RAM (Memory) | 8GB |
| Storage | 256GB SSD |
| System Version | Windows 10 / Windows 7 |
| Pre-installed Software | Support third-party applications |
| Network Communication | Ethernet, Wi-Fi |
| System Interface | USB port *2, RJ45 *1 |
| Audio Output | 8Ω 5W * 2 |
| Mouse and Keyboard | Support wired/wireless mouse and keyboard |
| Configuration Note | System configuration can be replaced with higher configurations or other Windows versions. |
| Body Color | White baked paint |
| Armoured Glass | 3mm thick high strength physical tempered glass |
| Body Size | Standard for 21.5" model |
| Stent Size | Standard for 21.5" model |
| Packing Measurement | Standard Neutral Carton Dimensions |
| Packaging Material | Gravity neutral carton |
| Net/Gross Weight | Standard configuration weight |
| Usage Scenario | Indoor |
| Input Voltage | AC110-220V |
| Startup Power | ≦45W |
| Standby Power | ≦1W |
| Service Environment | Temperature: -10℃~40℃ / Humidity: 10%RH~90%RH |
| Storage Environment | Temperature: -10℃~55℃ / Humidity: 10%RH~90%RH |
| Accessories | Complete machine *1, Power cord *1, Keys *2, WIFI stick *1 |
