Apollo AIP-G11001 wall mounted Digital Signage
AIP-G11001
Copied!
Key Features
- Massive 110-inch 4K UHD display (3840 × 2160 resolution)
- Ultra-wide 16:9 aspect ratio for immersive viewing
- 350 cd/m² brightness with 1200:1 contrast for clear visuals
- 10-bit color depth (1.07 billion colors) for rich image quality
- 178° wide viewing angle for full audience visibility
- D-LED backlight technology for stable and efficient performance
- Android 12 built-in system with smart features
- Powerful 8-core CPU (GOKE6760, up to 1.5GHz)
- 2GB RAM + 32GB storage for smooth operation
- Supports multiple media formats (video, image, audio)
- Built-in dual 15W speakers for strong audio output
- Multiple connectivity ports (HDMI, USB, RJ45, TF card, audio)
HD: Features a 16:9 full-view LCD display with 3840×2160 resolution
Process: Anodized aviation aluminum profiles, with the fuselage constructed from metal-sprayed cold-rolled steel plates.
Explosion-proof: The surface decorative glass is 4mm high-strength tempered glass.
Performance: Internal heat dissipation employs convection, ensuring reliable operation under prolonged load.
System: Android, Windows, input/output, and other options available
Technical Specifications
| Display Performance | |
| LCD Size | 110 inches |
| Resolution Ratio | 3840*2160 (4K UHD) |

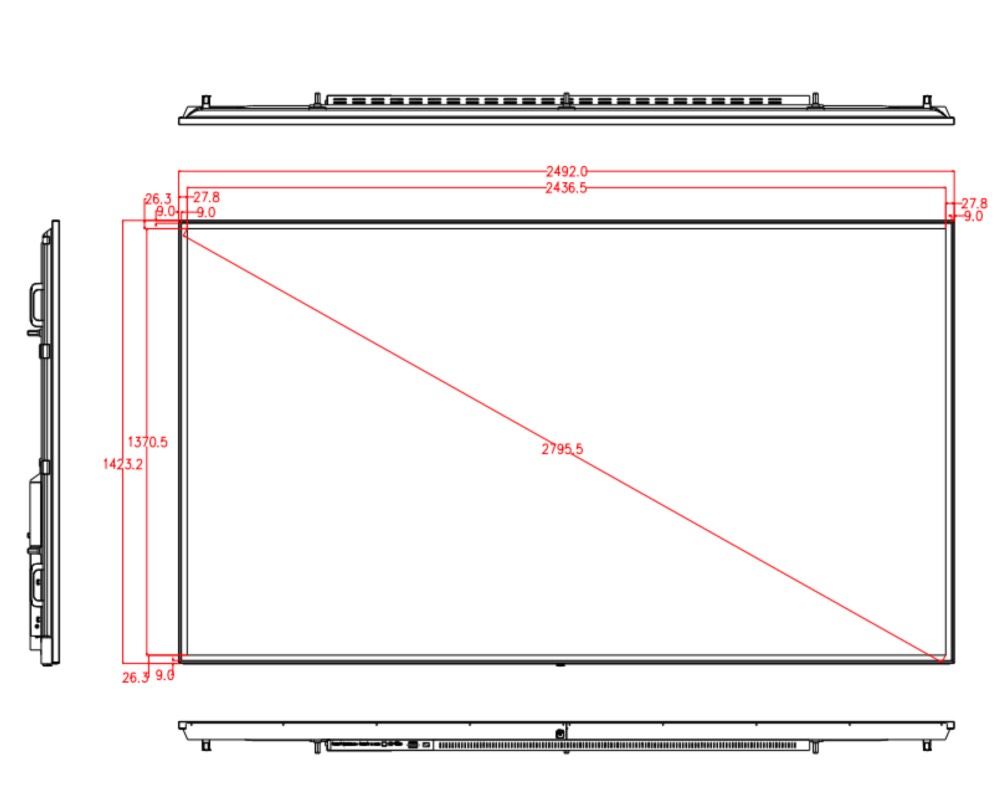

| Display Area | 2436.5（H）×1370.5(V) (mm) |
| Display Scale | 16:9 |
| Viewing Angle | 89/89/89/89 (Left/Right/Up/Down) |
| Luminance | 350cd/m2 |
| Contrast Ratio | 1200:1 |
| Backlight Type | D-LED |
| Color Intensity | 10-bit true color (1.07G) |
| Service Frequency | 60HZ |
| Pixel Arrangement | RGB vertical bars |
| System & Hardware | |
| Operating System | Android 12 |
| CPU | GOKE6760 V100 8 core A55, 1.2GHz, up to 1.5Ghz |
| Internal Storage (RAM) | 2GB |
| Memory (ROM) | 32GB |
| System Interface | 2 USB ports, 1 HDMI-IN, 1 RJ45, 1 headphone jack, 1 TF card slot |
| Network Communication | Supports Ethernet and WIFI |
| Third-Party Apps | Supported |
| Media Support | |
| Video Playback | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
| Image Formats | BMP, JPEG, PNG, GIF |
| Audio Power | 8Ω 15W * 2 (Internal Speakers) |
| Structural Design | |
| Process & Material | Anodized aviation aluminum profiles |
| Body Material | Cold-rolled steel plate (metal spraying) |
| Surface Protection | ≥4mm High-strength tempered glass (Explosion-proof) |
| Heat Dissipation | Internal convection cooling for prolonged load |
| Body Size | 2492 * 1424.3 * 102mm (excluding bracket) |
| Net Weight / Gross Weight | 120kg / 140kg |

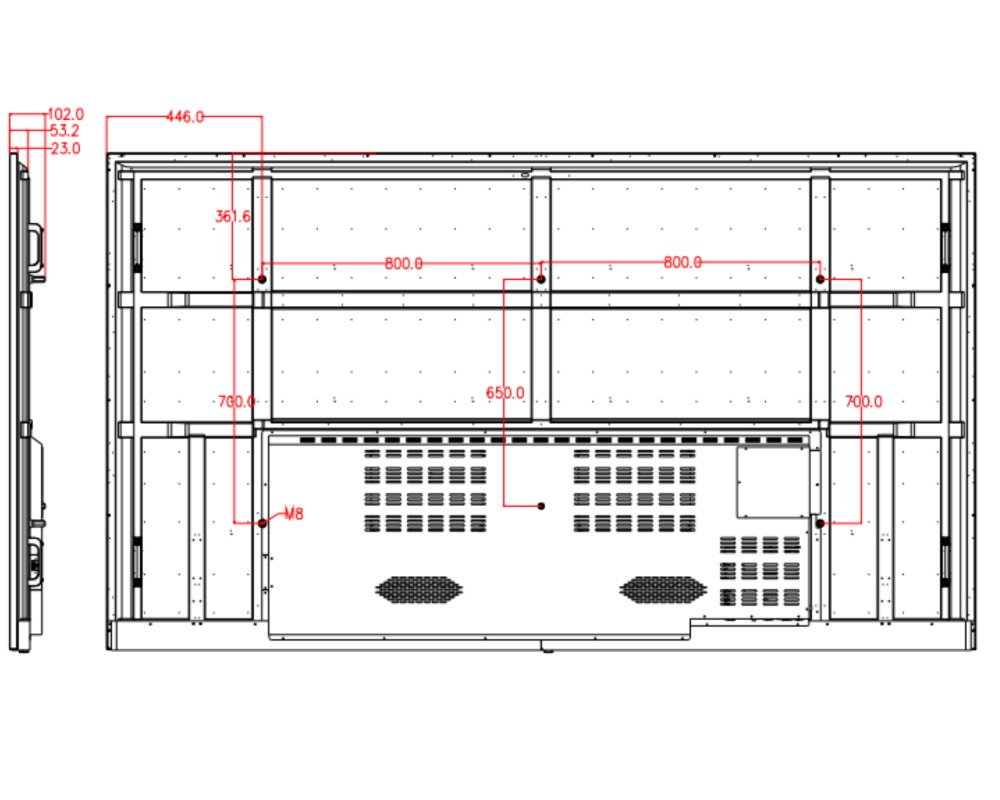

| Installation Way | Wall-mounted (Standard horizontal bracket 39mm) or optional mobile bracket |
| Electrical & Environment | |
| Input Voltage | ≤100～240V, 50-60 Hz |
| Maximum Power | ≤500W |
| Standby Power | ≤0.5W |
| Service Environment | Temp: -10°C to 40°C | Humidity: 10% RH to 90% RH |
| Storage Environment | Temp: -15°C to 65°C | Humidity: 10% RH to 95% RH |
| Logistics & Accessories | |
| Packing Measurement | 2690 * 1700 * 280mm |
| Packaging Material | Gravity carton |
| Standard Accessories | 1 power cord, 1 WiFi antenna, 1 remote control, certificate, and warranty card |
